Micro LED Matrix Display
Description
Parameter information
| Brand name | ONE PLUS ONE | Model | Micro LED Matrix Display |
| Origin | China | Material | LED |
| Solution | Large screen customization solution | Warranty period | 1 year |
| Usage environment | indoor/outdoor |
National Compulsory Product Certification Test Report |
15801-GK0903-20231029 |
Micro LED Matrix Display
Features of HD Micro LED Matrix Display
High-definition quality
16:9 screen
HIGH quality lamp beads
Ultra-light and ultra-thin
Simple structure
Seamless stitching
Front and rear maintenance
High gray level
Application Scenario

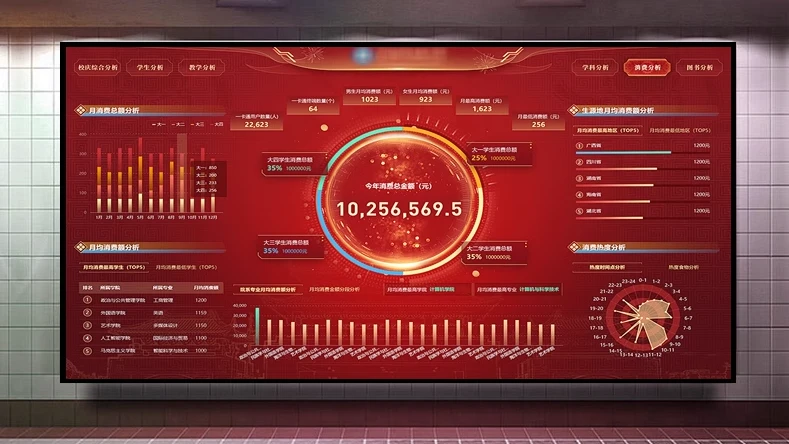

The micro led matrix display is a high-end display technology with a brightness of more than 1200 CD, clear picture quality, smooth picture and exquisite color. This display screen uses a new type of high-brightness lamp beads with 178 degrees of viewing angle, which is suitable for indoor conference rooms, control rooms, large data visualization centers, outdoor display and other places. The design of the SMD unit board is light and thin, which makes the installation more convenient. In addition, the micro-pitch LED display has a life span of more than 100,000 hours.
Series: P0.9375

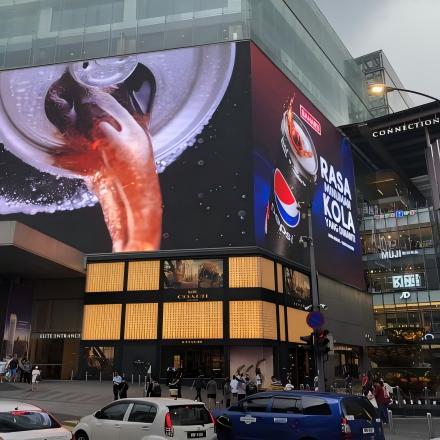

Outdoor shopping mall display screen

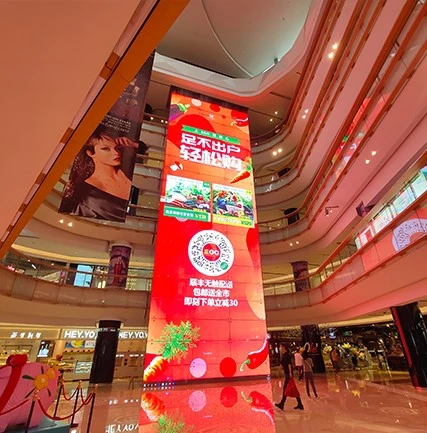

Large screen inside the mall

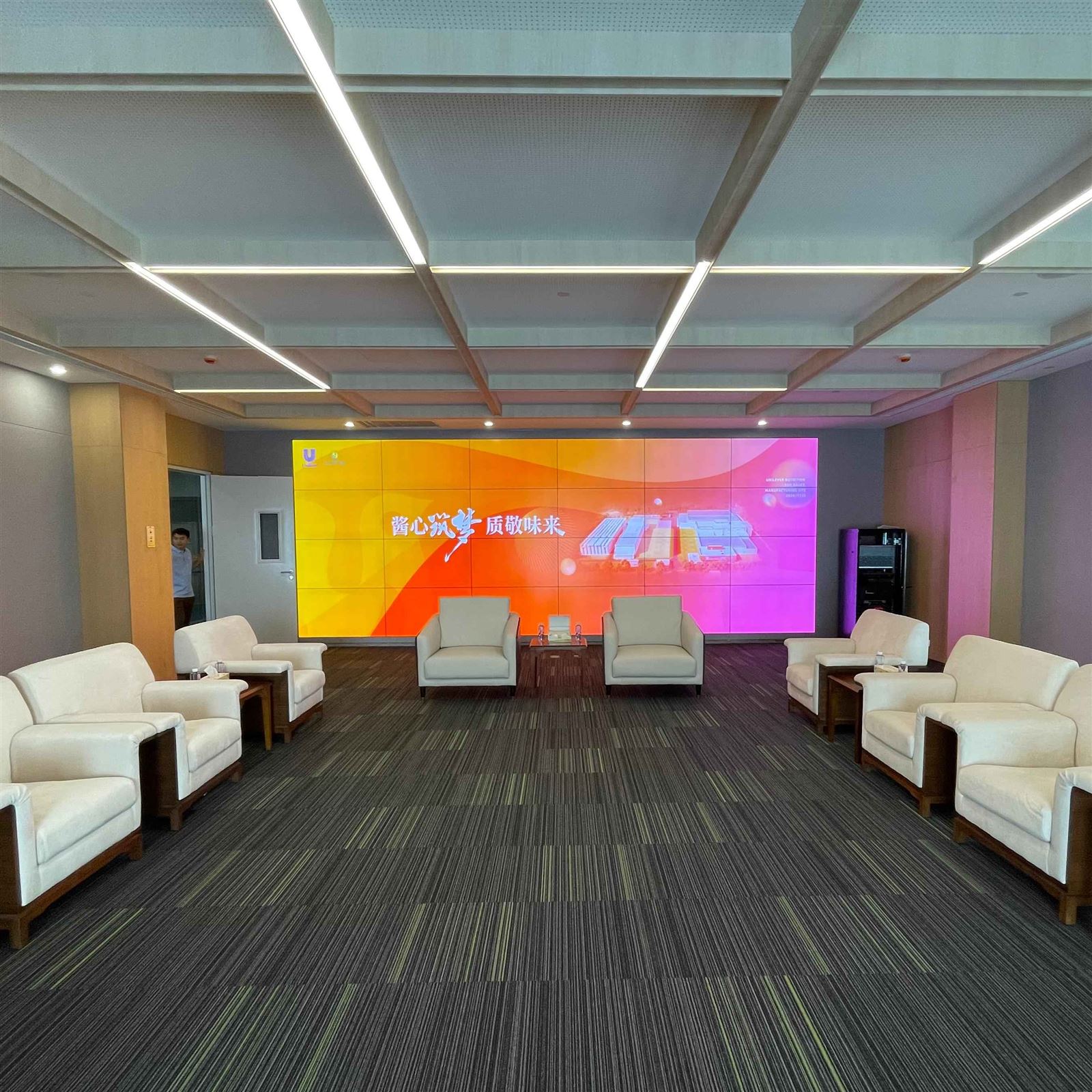

Office Space/Meeting Rooms

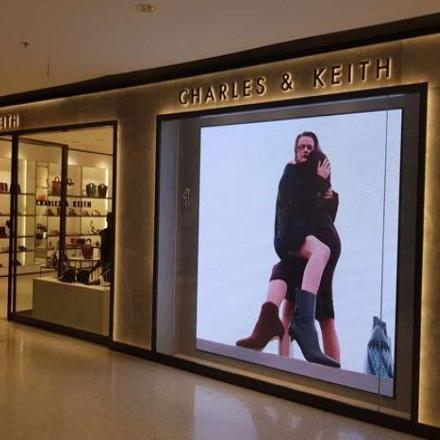

Chain store advertising screen

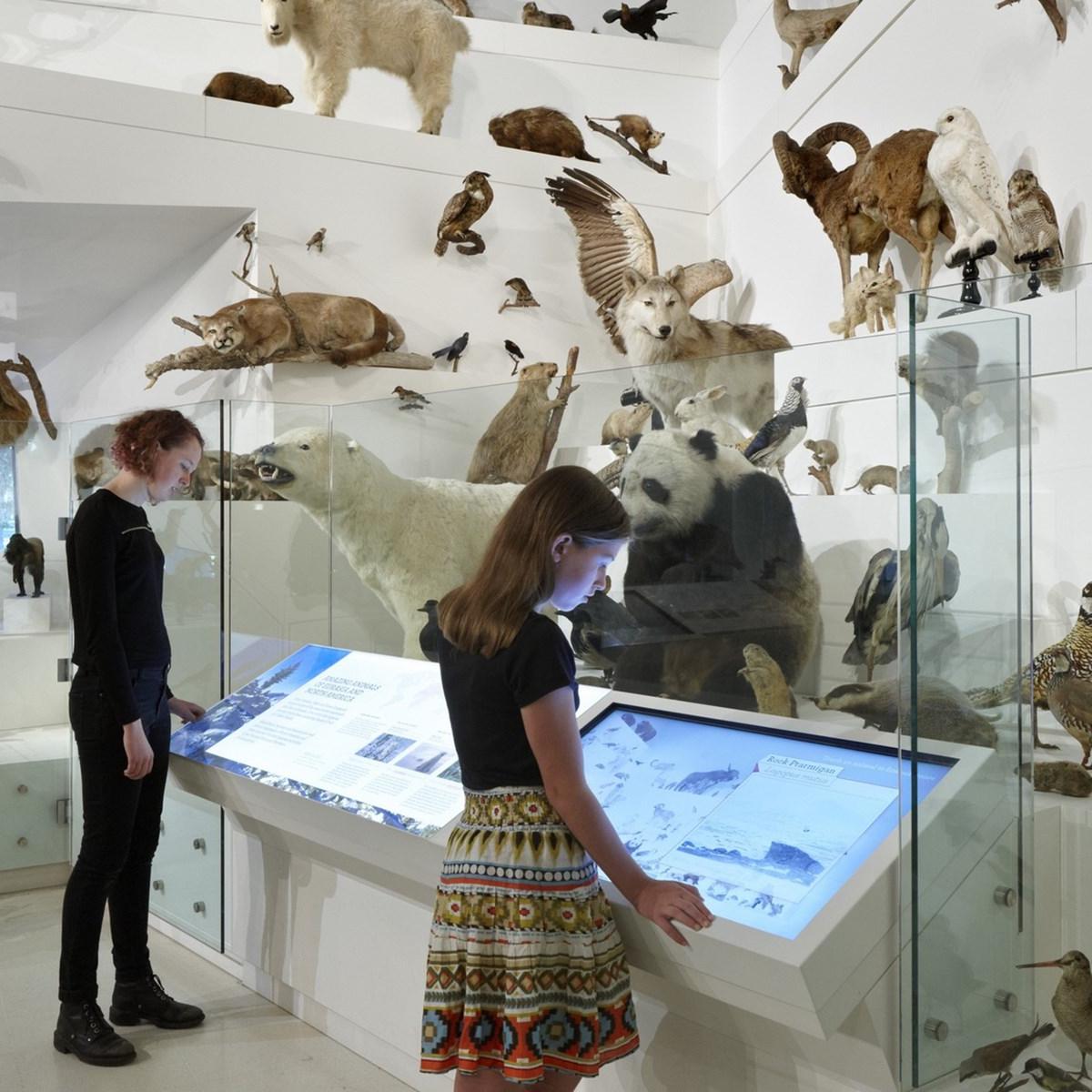

Exhibition Hall/Exhibition Hall/Museum/Art Gallery/Art Museum

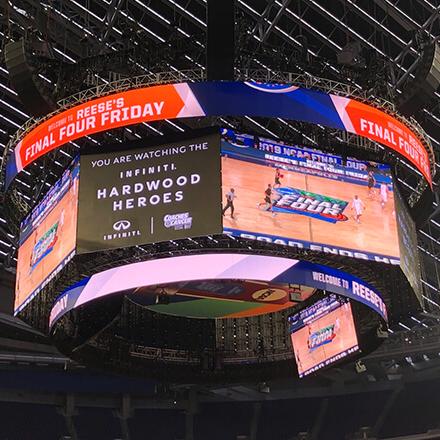

Stadium/Swimming Pool/Sports Venue

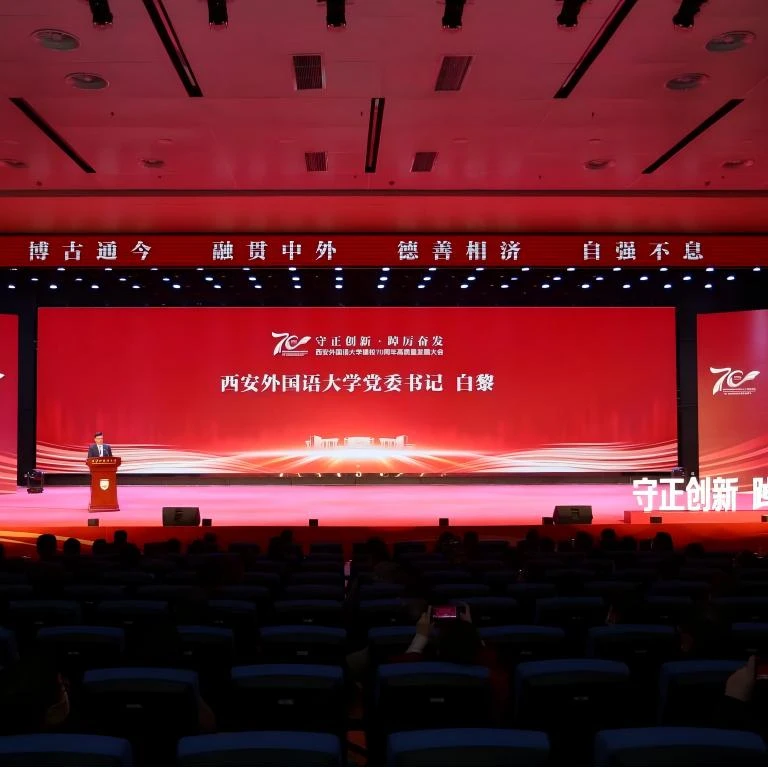

Large event exhibition hall

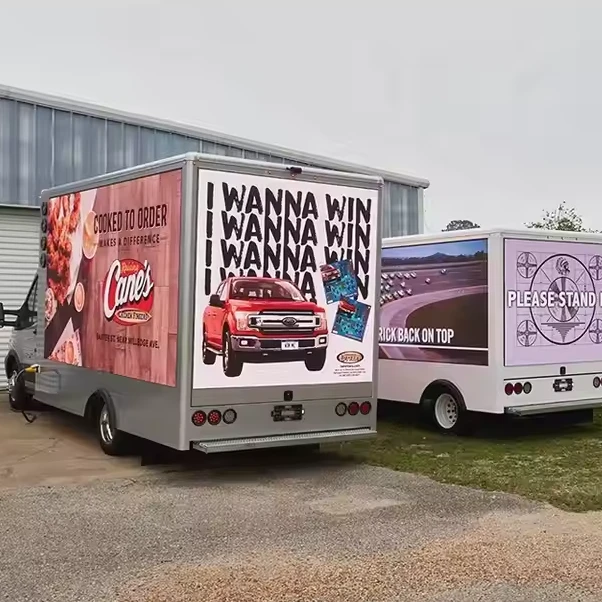

Car screen
Advantages

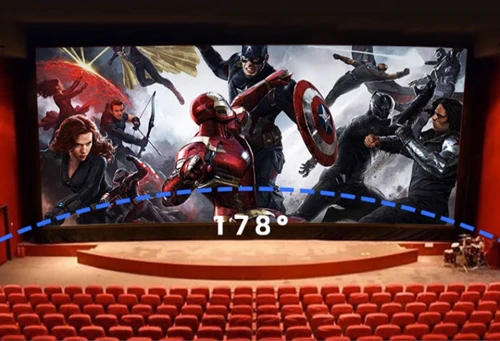

1. A wider perspective: 178 Wide viewing Angle, full color, constant brightness, no fear of Angle, the picture in a glance.
2. 8 Big advantage
Hd Resolution
Seamless Splicing
Low Refractive Index
Lamp Bead Consumption
Remote Control
Wide Area View
High Refresh Rate
Natural Habit

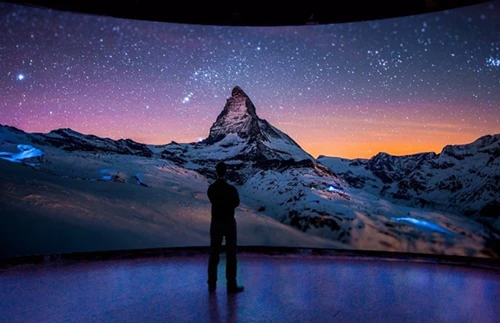

3. 4K ultra HD picture quality:The light column of the micro led matrix display is closely connected, which can effectively avoid the phenomenon of water ripples / Moore grain / picture flicker in the picture, and perfectly presents a super shocking audio-visual feast.

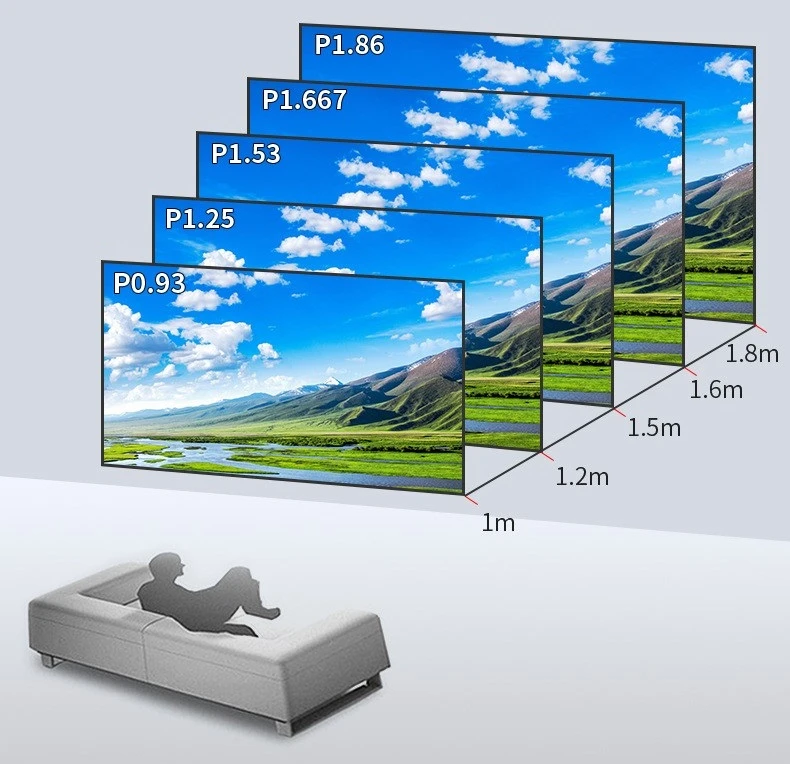

All in all the smaller the model is, the closer the lamp posts are, the better the viewing effect is, and the more delicate the picture is.
Packaging
|
Wooden box |
|
Unit board packaging |
|
Air flight case |
|
Simple wooden frame |
Parameter Specific
|
Technical Parameters |
P0.9375 Four-in-one |
|
Drive IC |
QFN package (optional for Jichuang and Fuman) |
|
Amplification IC |
74HC245 |
|
Screen Density |
1137777 points/m² |
|
Screen Brightness |
≥600cd/m² |
|
Display Color |
16,777,216 colors |
|
Brightness Adjustment |
0-255 levels |
|
Optimal Viewing Distance |
Clear display within 2-3 meters |
|
Grayscale Levels |
16 bits |
|
Grayscale Calibration |
2nd order nonlinear grayscale correction |
|
Screen Luminance Uniformity |
No obvious mosaic phenomenon |
|
Image Adjustment |
Contrast/hue adjustment/single module brightness adjustment |
|
Driving Mode |
1/46S scanning |
|
Scanning Speed |
3840Hz |
|
Contrast |
5000:01:00 |
|
Control Method |
Screen corresponds to control machine display point by point |
|
Continuous Use Time |
>72 hours |
|
Service Life |
>50,000 hours |
|
Mean Time Between Failures |
>10,000 hours |
|
Discrete Out-of-Control Points |
None |
|
Continuous Out-of-Control Points |
None |
|
Ambient Temperature of Use |
-30℃~+85℃ |
|
Relative Humidity |
No frosting in 10%-85%RH environment |
|
Effective Communication Range |
Use category five cables within 100m, multimode fiber transmission for 100-500m |
|
Peak Power Consumption (W/Unit) |
160W |
|
Average Power Consumption (W/Unit) |
100W |
|
Total Weight of the Box |
4.05kg |
|
Dual Card Dual Backup |
Dual power supply/dual receiver card |
FAQ
Q: How much power does a Micro LED consume?
Q: What is the brightness of micro led matrix display?
