Advertising Indoor LED Display
Description
Parameter information
| Brand name | ONE PLUS ONE | Model | Advertising Indoor LED Display |
| Origin | China | Material | LED |
| Solution | Large screen customization solution | Warranty period | 1 year |
| Usage environment | indoor |
National Compulsory Product Certification Test Report |
15801-GK0903-20231029 |
High-definition small pitch LED full-color screen
High-definition small pitch LED full-color screen
High grayscale · High brightness · High refresh rate
High-definition Advertising Indoor LED Display
High-definition quality
16:9 screen
High quality lamp beads
Ultra-light and ultra-thin
Simple structure
Seamless stitching
Front and rear maintenance
High gray level
Application Scenario
Advertising indoor led displays are a new type of high-definition display equipment. By reducing the spacing between pixels, they enhance the clarity and detail of the displayed images, making them highly suitable for indoor environments with high-quality image requirements.
Series: P2 /p2.5 /p1.53 /p1.25

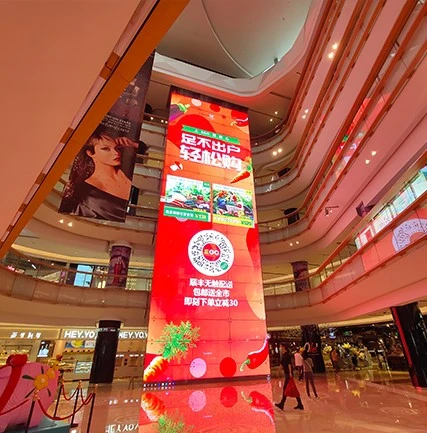

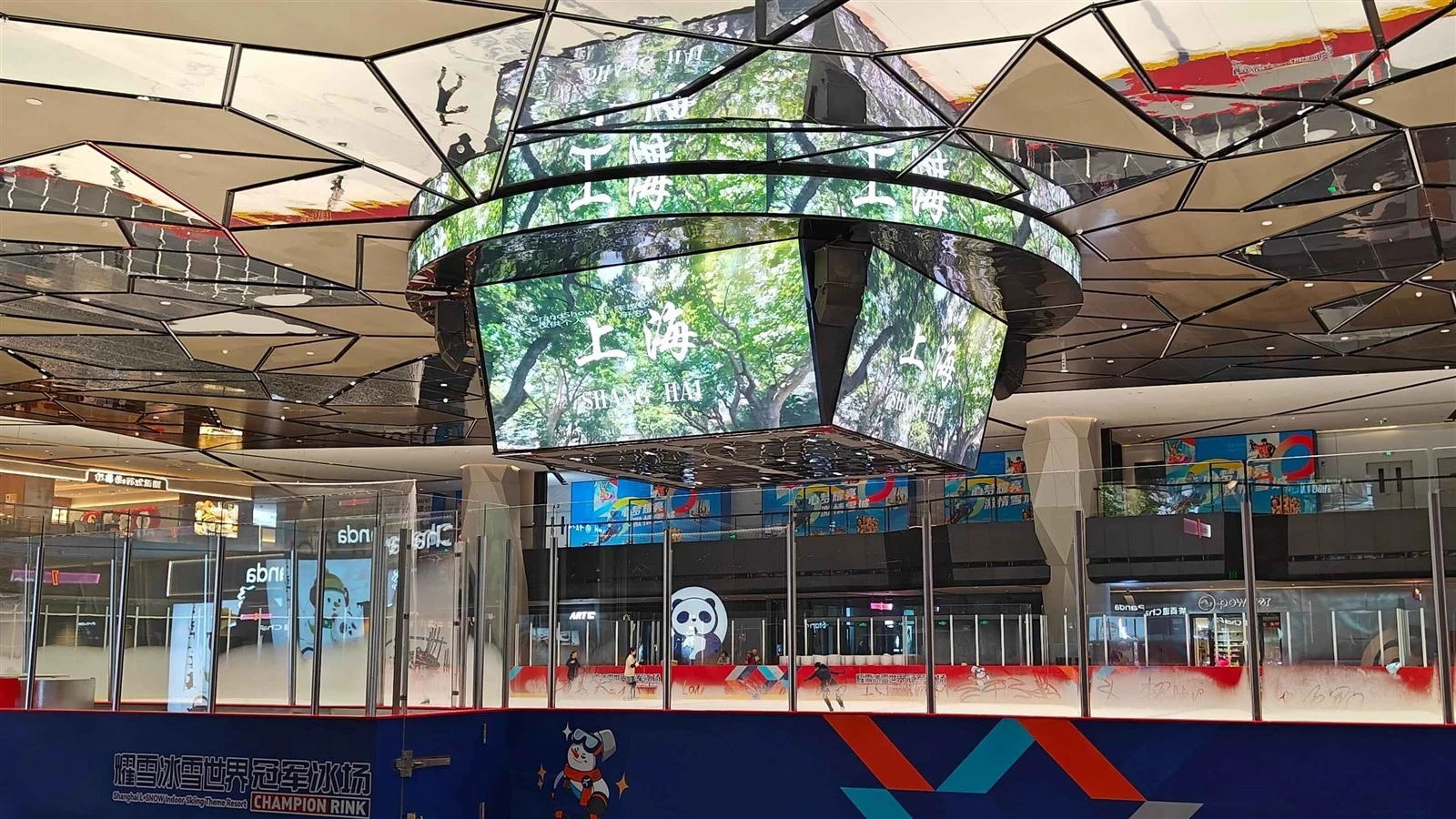

Large screen inside the mall

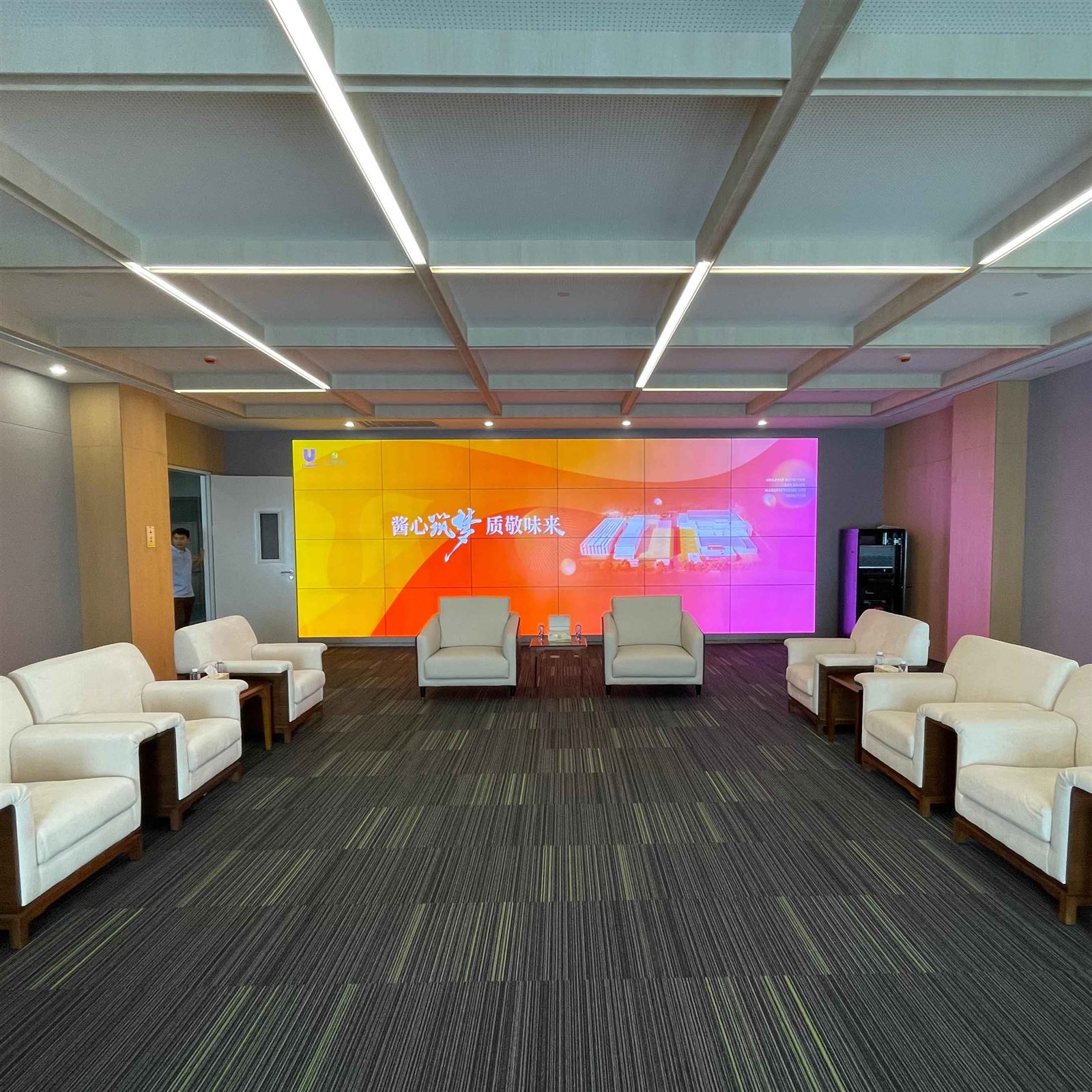

Office Space/Meeting Rooms

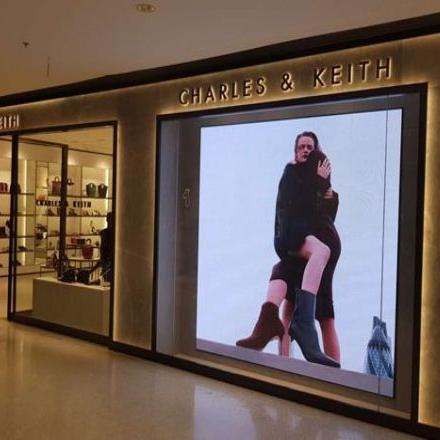

Chain store advertising screen

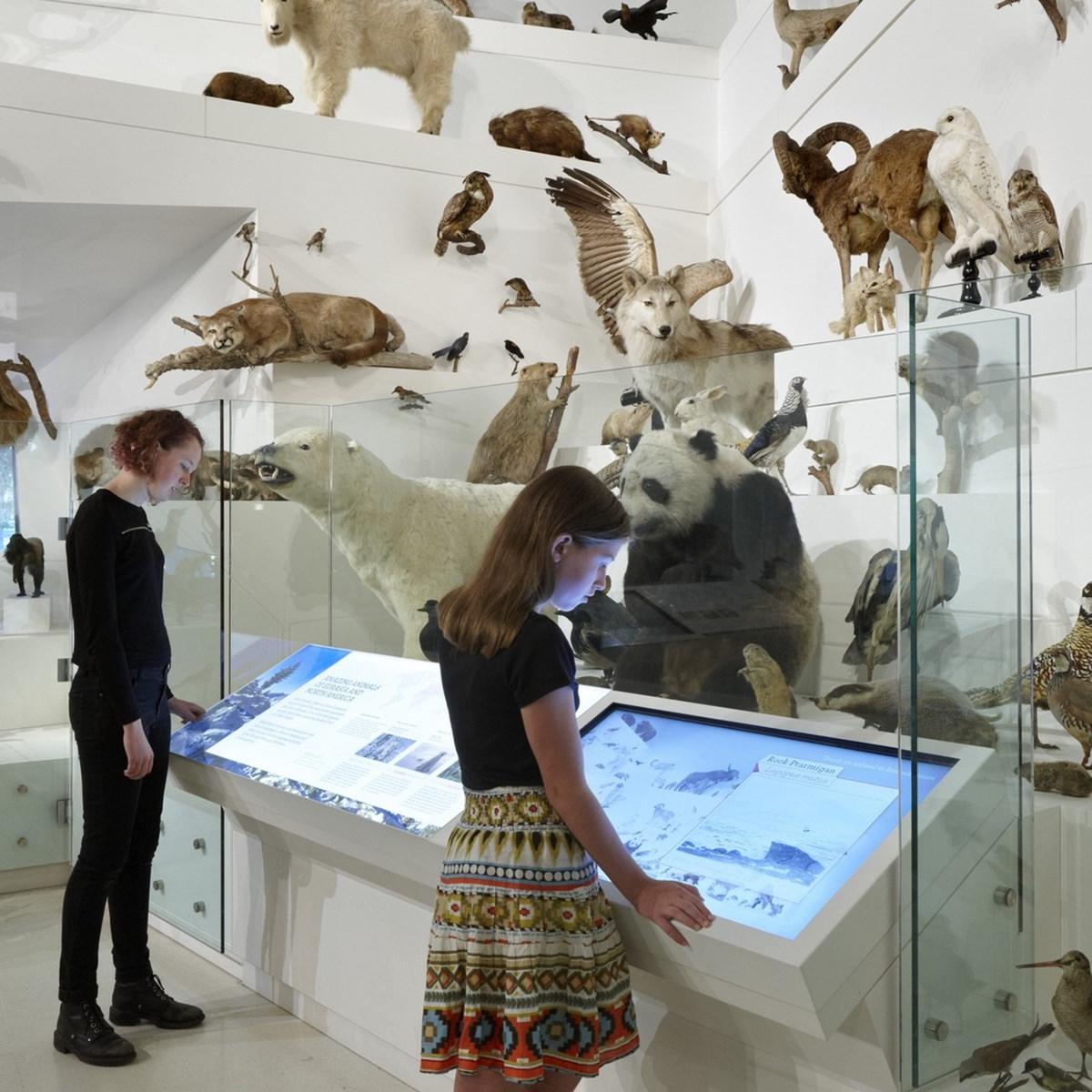

Exhibition Hall/Exhibition Hall/Museum/Art Gallery/Art Museum

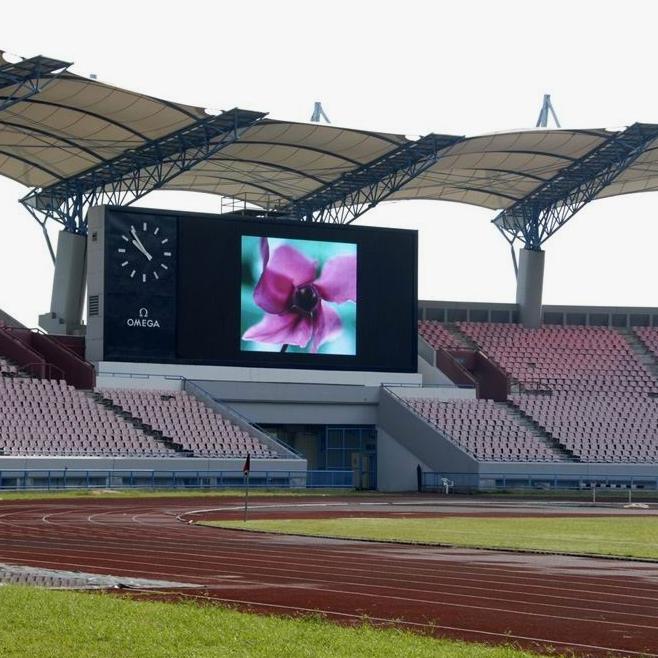

Stadium/Swimming Pool/Sports Venue

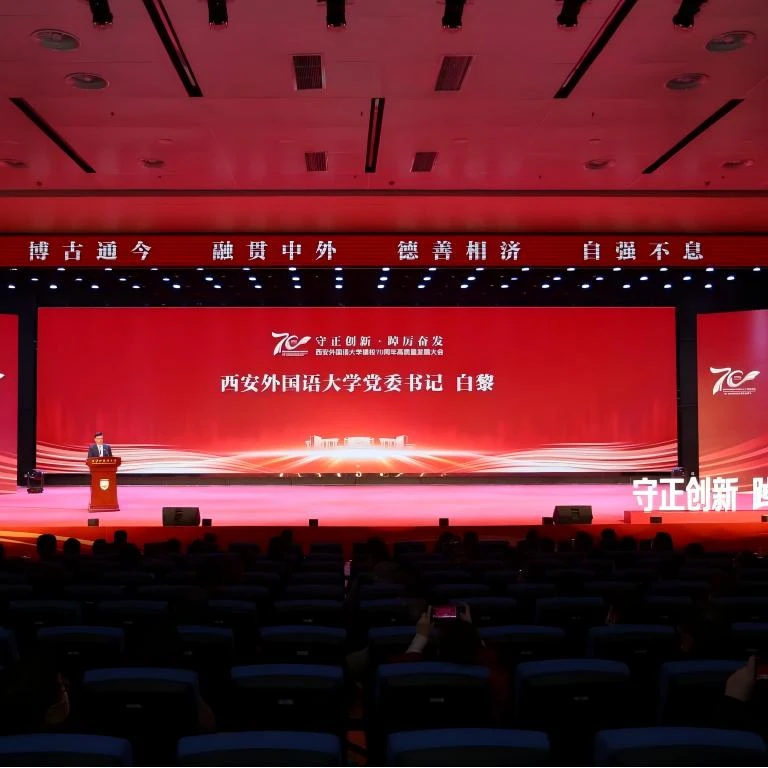

Large event exhibition hall

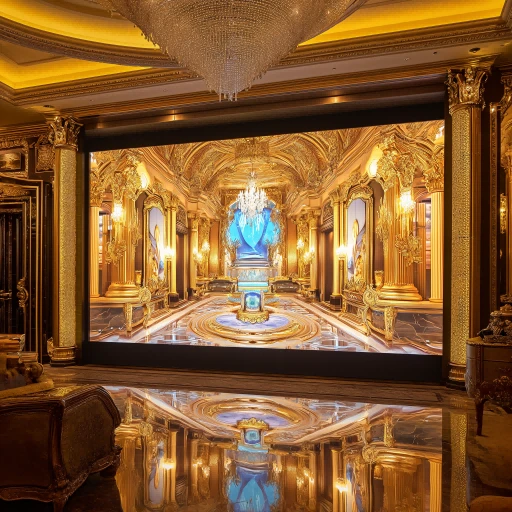

Hotel/Hospital/School/Research Institute

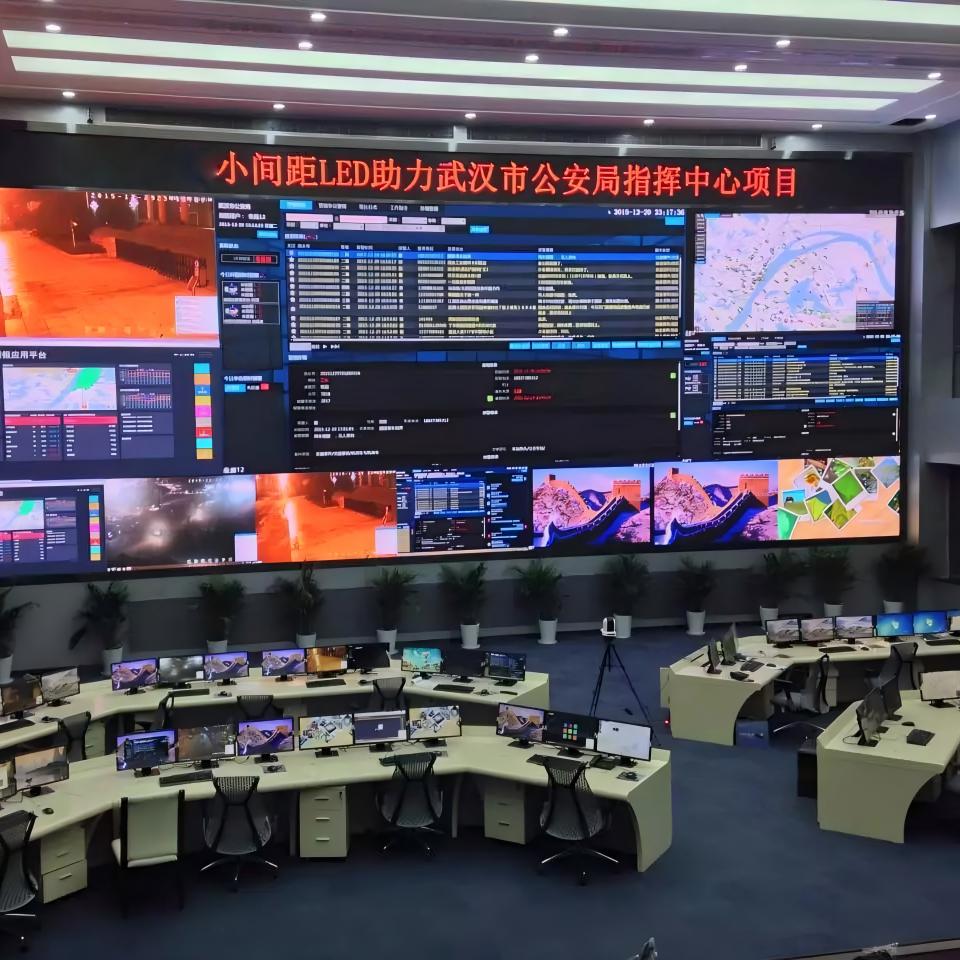

Command Center/Data room/Control Room
High-definition quality
Adopt small pitch, high-quality lamp beads, 5000:1 contrast ratio
rich and saturated colors, delicate picture quality, and realistic colors.

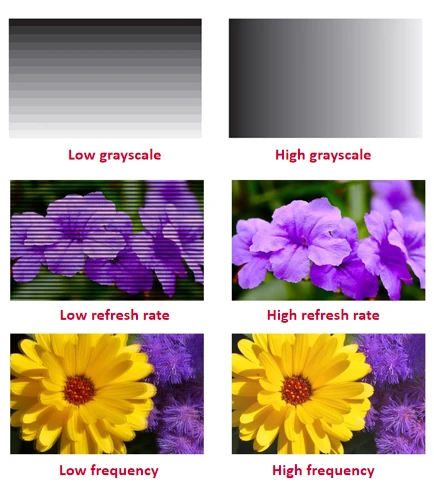

High grayscale,High refresh rate,High frequency
Fast response speed, brightness can be automatically adjusted according to the environment, large screen, strong visual, easy and fast to change advertising content.Color brightness attenuation consistency, ensuring brightness and color consistency.
Broadcast-level color gamut,intelligently adjustable color temperature
Adopt RGB three-primary color imaging technology to reach broadcast-level standards. After single-point brightness and chromaticity correction, the brightness and chromaticity of the screen are constant, and the color temperature can be adjusted from 3000-12000K.

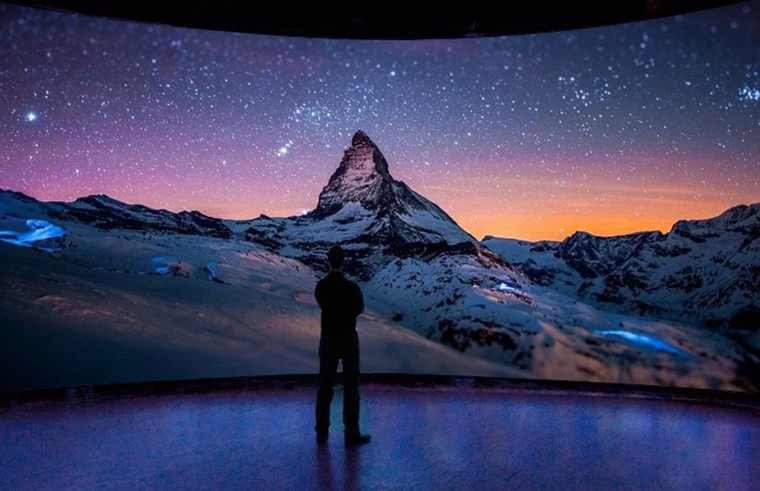

Wide viewing angle and environmentally friendly experience

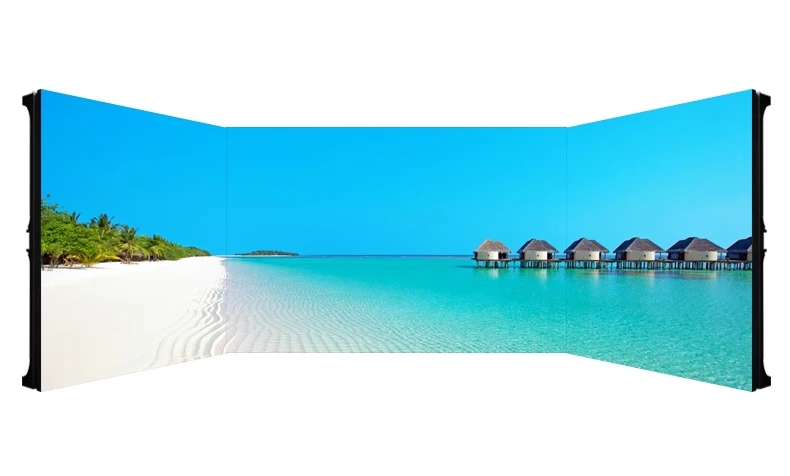

Supports 178° horizontal and vertical viewing, high consistency, no color cast, high contrast, and can achieve an embracing arc splicing experience
Product Features
Gold wire packaging
The lamp beads are encapsulated with gold wire and copper bracket, which has strong oxidation resistance, reverse pressure resistance, strong conductivity, reduces the dead lamp rate, improves stability, and the gold wire and copper bracket double protect the tube core, which relatively prolongs the service life.

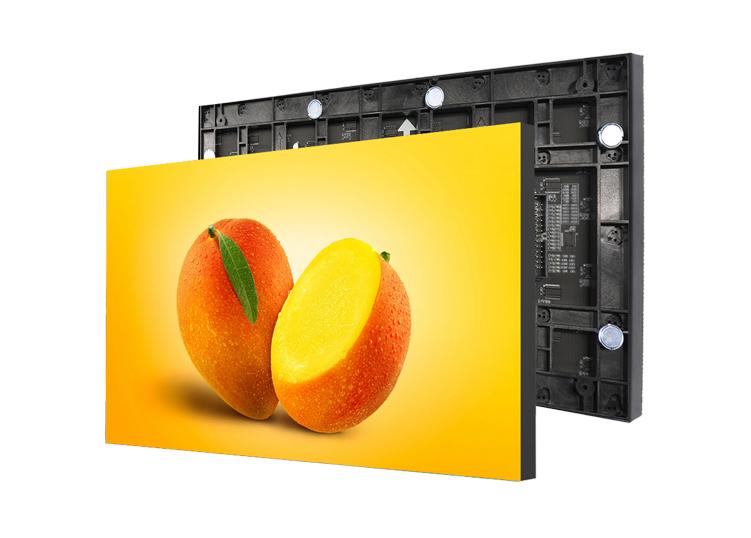

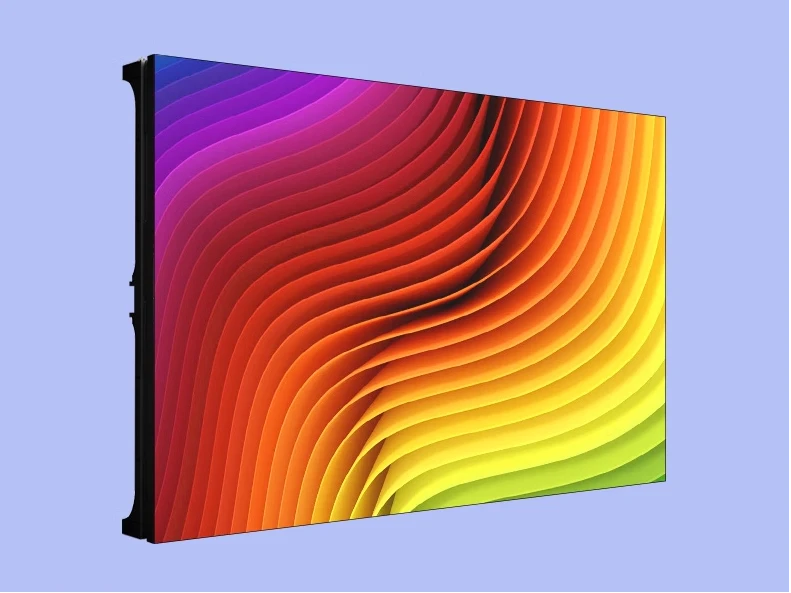

The box is light and thin, and easy to install
Suitable for column, wall installation, rental, car screen, mobile media use. Adopting new structural design, one person can carry it by hand, very light. Beautiful and not easy to deform, easy to splice and flat, reducing the pressure of the screen on the steel structure during installation.

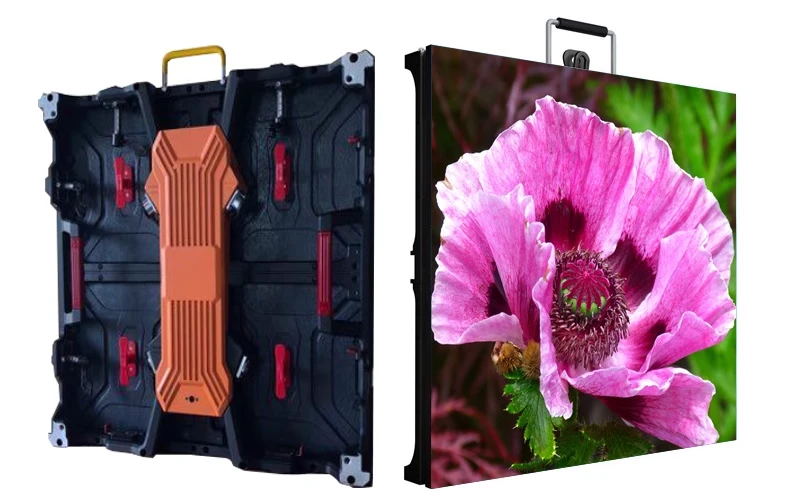

Die-cast aluminum housing
New design, realizes direct bonding between chip and aluminum substrate, and the thermal conductivity is higher than conventional box.
Golden Ratio 16:9
The small-pitch LED cabinet has a ratio of 16:9, which is the golden ratio of the human pupil, providing a comfortable and natural visual experience.
Advantages
High refresh rate, smooth switching, clear display
The image is stable, with no flickering or ghosting during screen transitions.
Low brightness and high gray technology make the details clearer
The brightness can be adjusted according to the environment (100-550nit), reducing the brightness without losing the grayscale and picture quality.

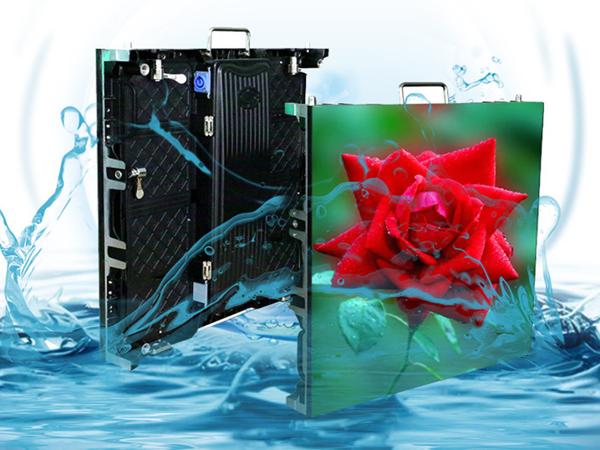

Industrial-grade Dust and Waterproof
The display screen backplane adopts industrial-grade dust and waterproof technology, capable of adapting to various harsh weather conditions.
A wider perspective
178 Wide viewing Angle, full color, constant brightness, no fear of Angle, the picture in a glance.
4k ultra HD picture quality
The light column of the advertising indoor led display is closely connected, which can effectively avoid the phenomenon of water ripples / Moore grain / picture flicker in the picture, and perfectly presents a super shocking audio-visual feast.
Product packaging methods are diverse
Escort the products to ensure transportation safety.
| Wooden box |
| Unit board packaging |
| Air flight case |
| Simple wooden frame |
Parameter Specific
|
Parameter category |
parameter |
Parameter value |
|

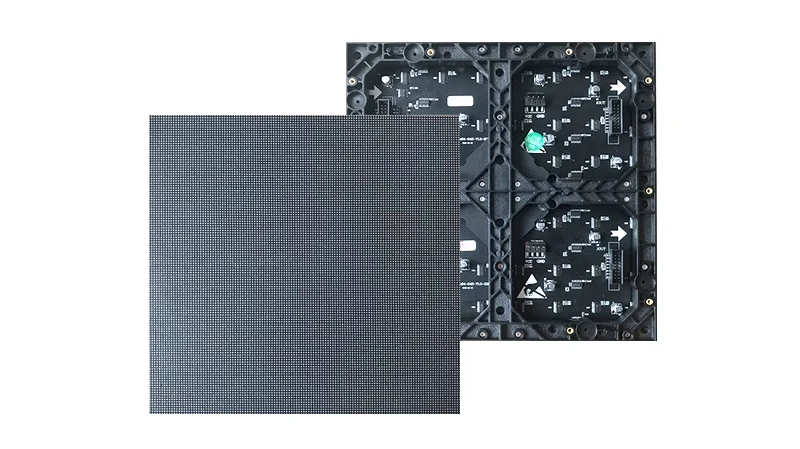

Module parameters |
Parameters / Model |
OPO-LD2S01 |
|
Pixel structure |
SMD2121 three-in-one LED | |
|
Pixel distance(mm) |
2 |
|
|
Module resolution(W×H) |
160×80=12800 |
|
|
Module size(mm) |
320×160×16.6 |
|
|
Module weight(kg) |
0.46 |
|
|
Module input voltage(V) |
5±0.1 |
|
|
Modue maximum current(A) |
≤5.2 |
|
|
Module maximum power consumption(W) |
≤26 |
|
|
Box parameters |
Box module composition(W×H) |
2×3 |
|
Box resolution(W×H) |
320×240 |
|
|
Box size(mm) |
640×480×70 |
|
|
Box area(m2) |
0.3072 |
|
|
Box weight(kg) |
6～8 |
|
|
Box pixel density(点/m2) |
250000 |
|
|
Level up degree of box(mm) |
≤0.2 |
|
|
Maintenance mode |
Post-ma(Can be customized before maintenance) |
|
|
Box material |
Die Cast Aluminum |
|
|
Electrical parameters |
Box maximum power consumption(W) |
166 |
|
Average power consumption of box(W) |
55.3 |
|
|
Power supply requirements |
AC90V－132V/ AC186V－264V,Frequency47Hz～63Hz |
|
|
Optical parameters |
Monochromatic brightness correction |
Yes |
|
Single point chroma correction |
Yes |
|
|
White balance brightness(nits) |
≥500 |
|
|
Color Temperature(K) |
2000～9500 |
|
|
Perspective |
140/120 |
|
|
Brightness/Chromatic Uniformity |
≥99% |
|
|
Contrast |
5000:01:00 |
FAQ
Q: What is the Small pitch LED display screens?
Q: Is smaller pixel pitch better?
