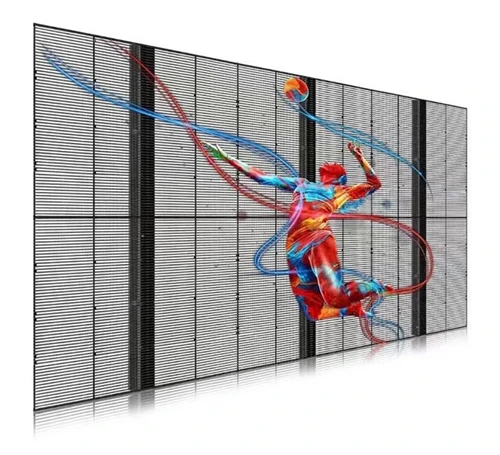

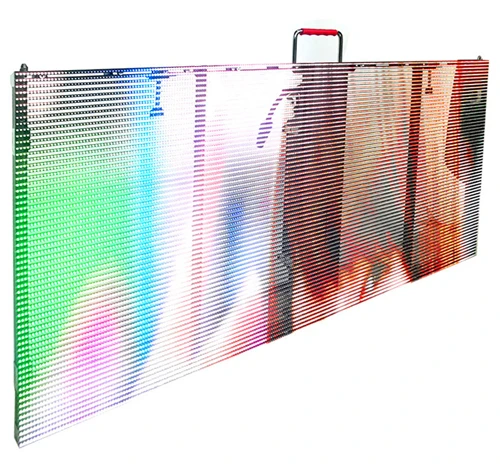

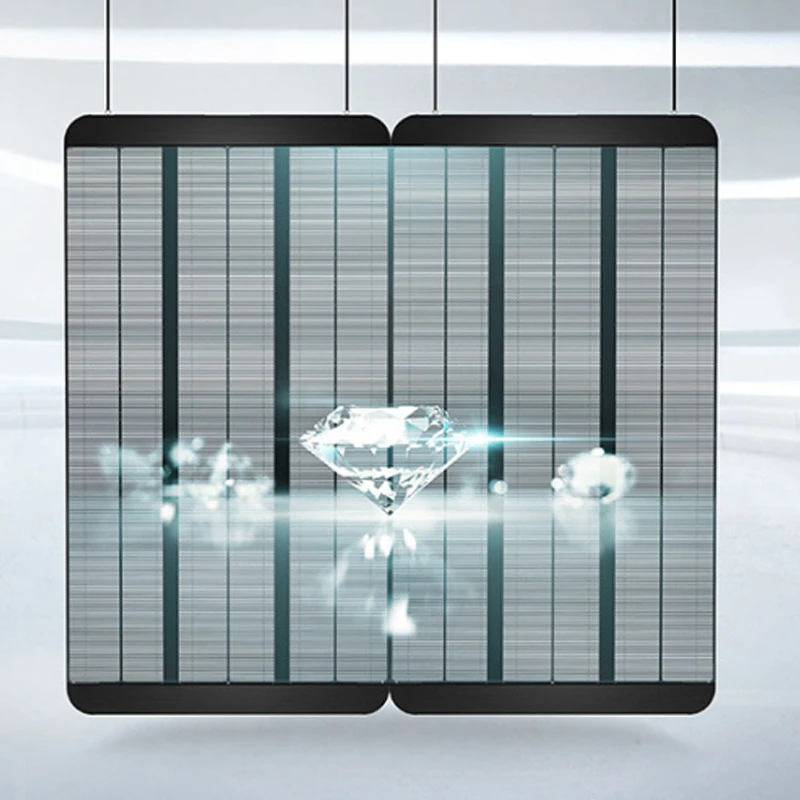

Transparent LED Curtain
Description
Advantages
1. First of all, the biggest feature of transparent led curtain is its high degree of customization and flexibility.
Since the transparent led curtain is composed of multiple detachable light strips, it can be freely combined into screens of various shapes and sizes as needed. This design feature makes the grille screen suitable for different scenarios, whether indoors or outdoors, and can meet various space requirements.
2. Secondly, the led curtain has higher brightness and contrast.
Since each light strip can be controlled independently, the grille screen can achieve more delicate brightness adjustment and contrast control, thereby presenting a clear and full picture under various light conditions.This makes grille screens widely used in outdoor billboards, stage performances and other occasions that require high brightness and contrast.
3. In addition, transparent led curtain also has the characteristics of lower energy consumption and long life.
Compared with traditional display screens, grille screens use LED dot matrix as the display unit. LED lamp beads have the advantages of high efficiency, energy saving and long life. At the same time, because each light strip can be controlled independently, the grille screen can be partially turned on and off, further reducing energy consumption. This makes grille screens even more attractive in the context of sustainability.
4.Finally, our led curtain also offer good viewing angles and reliability.
The grille screen is composed of multiple light bars, each of which has a smaller viewing angle, giving the entire screen a wider viewing angle and providing a better viewing experience.
At the same time, since transparent led curtain is composed of multiple light bars, even if a certain light bar fails, it will not affect the normal display of the entire screen, ensuring the reliability of the grille screen.

Application Scope
The transparent led curtain, also known as LED transparent grille screen, can be widely used in glass curtain walls, building walls, outdoor billboards, stage backgrounds, exhibition displays and other fields.
1. Compared with traditional LED screens, LED grille screens have higher clarity and lower power consumption. They can also achieve special effects such as transparent display and bending deformation, providing designers with more creative space.

2. As a new display technology, LED grating screen has huge market potential, and its application scenarios will be more extensive in the future.

3. High contrast High brightness and high definition, increase the quality of the image, make the image more vivid and realistic.
Parameter Specific
|
Pixel pitch |
25 mm x 25 mm |
|
Pixel Configuration |
1R1G1B |
|
LED component |
SMD3535 |
|
Size of cabinet |
500mm x 1000mm /1000mm x1000 mm |
|
Thickness |
80mm |
|
Resolution of cabinet |
20 x 40 dots/ 40 x 40 dots |
|
Material of Cabinet |
Aluminum + PC |
|
Weight of Cabinet |
15 Kg/sq.m |
|
Brightness |
> 3000cd/sq.m |
|
Transparency |
90 % |
|
Density |
1600 dots/sq.m |
|
Best viewing angle |
140º /140º |
|
Pixel Configuration |
1R1G1B |
|
Best viewing distance |
30 -100M |
|
Maximum power consumption |
<600W/sq.m |
|
Average power consumption |
<150W/sq.m |
|
Driving method |
static scan |
|
Control method |
Synchronization |
|
Gray scale |
65536 |
|
Colors |
256*256*256 |
|
Color temperature |
3200-9300k |
|
Uniformity |
97% |
|
Working voltage |
AC110V~240V±10% |
|
Working temperature |
-20ºC~+50ºC±10% |
|
Working humidity |
10% ~ 90% |
|
MTBF |
6500 hours |
|
Frame frequence |
47~63Hz |
|
Refresh frequence |
>1080Hz |
|
Installation method |
Hanging or stacking |
|
IP grade |
IP45 |
|
Life Span |
>50,000 hours |
|
Data transafer method |
RJ45/DVI |
|
Pratical standard |
CCC TUV-CE ETL etc. |
|
Effectivce Communication |
Unshielded twisted pair net line transmission distance:100M; Max transmission distance:130M; Multi-mode optic fiber: 500M; |
|
Accepting signal with video processor |
PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
|
Systems operating platform |
WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
FAQ
Q: What is Transparent led curtain?
We mainly focus on indoor and outdoor fields such as advertising display, stage display, commercial display, data visual display, conference display, and consumer display.
Q: How about the size of the project?
Q: What is the viewing angle?
Q: What is your quality guarantee?
All our LED displays have CE, FCC certificates
Q: What are LED Types?
Q: What's the controlling system?
