Transparent LED Screen Wall Display
transparent led display board
transparent led video screen
transparent led monitor

Transparent LED Screen Wall Display

Transparent LED Screen Wall Display is good for decoration, creative design and advertising usage, it works as same as normal LED screen, most suitable for indoor glass building wall. Its creative 3D animations will bring impressive and clear visual experience, and people see through the glass without blocking sight.

Send Inquiry

Description

Characteristics

The Transparent LED screen display, as a new creative screen, is becoming more and more popular due to its advantages such as light weight, no need for steel frame structure, easy installation and maintenance, excellent transparency performance, etc

Series: P2.6-5.2MM

Transparent LED Screen Wall Display

Advantages

High Gray Scale

Super Thin And Light

High Permeability

Refresh Rate

Good Heat Dissipation

Uitra High Brightness

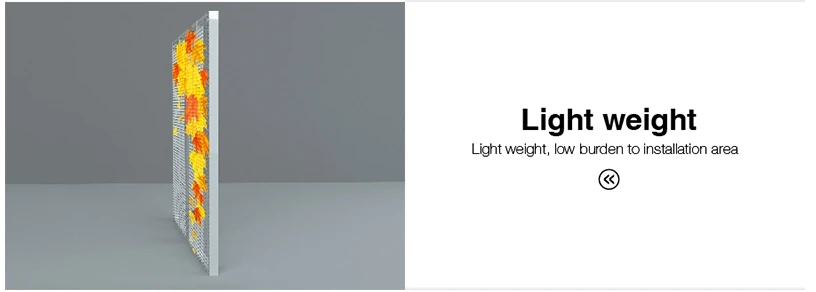

Light weight

Light weight, low burden to installation area

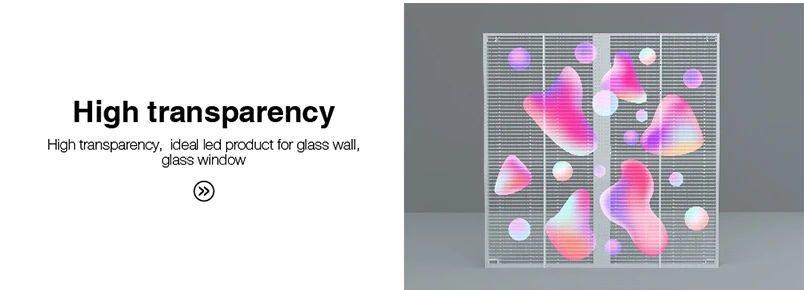

High transparency

High transparency, ideal led product for glass wall, glass window

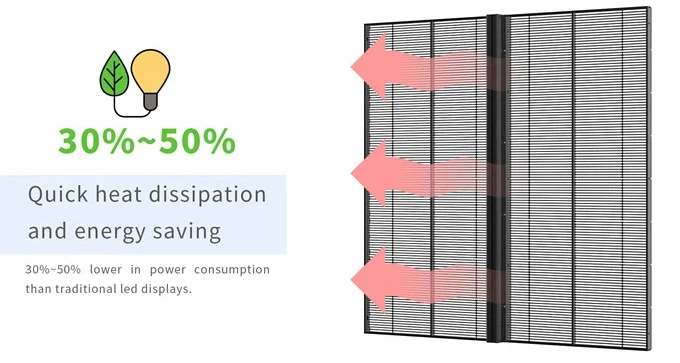

Quick hear dissipation and energy saving

30%~50% lower in power consumption than traditional led displays.

Light weight,High transparency,Quick hear dissipation and energy saving

outdoor transparent led display

clear led panel

transparent flexible led display

transparent leds

Packaging

Wooden box

outdoor transparent led screen transparent glass led display Creative LED Display Screen

Unit board packaging

transparent led screen wall display transparent led display board transparent led video screen

Air flight case

transparent led monitor outdoor transparent led clear led panel

Simple wooden frame

transparent flexible led display transparent leds outdoor transparent led screen

Parameter Specific

product model	ZR-IH-P2.6	ZR-IH-P3.3	ZR-IH-P3.9	ZR-IH-P7.8	ZR-IH-P10.4
pixel pitch	2.6-5.2mm	3.3-6.25mm	3.9-7.8mm	7.8-7.8mm	10.4-10.4mm
Pixel composition	SMD1921	SMD1921	SMD1921	SMD1921	SMD1921
brightness level	4500nits	4500-5000nits	4500-5000nits	4500-5000nits	4500-5000nits
pixel density	73728dot/m2	48640dot/m2	32256dot/m2	16384dot/m2	9216dot/m2
permeation ratio	≥45%	≥50%	≥60%	≥60%	≥70%
Module size	500mm*125mm	500mm*125mm	500mm*125mm	500mm*125mm	500mm*125mm
Module resolution	192*24dot	152*20dot	126*16dot	64*16dot	48*12dot
case size	1000*500mm	1000*500mm	1000*500mm	1000*500mm	1000*500mm
Box resolution	384*96dot	304*80dot	252*64dot	128*64dot	96*48dot
Cabinet weight	4kg/piece	4kg/piece	5kg/piece	5kg/piece	5kg/piece
level of protection	IP30	IP30	IP30	IP30	IP30
The Best View	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
scanning mode	12S	8S	7S	4S	3S
refresh rate	1920Hz/3840Hz	1920Hz/3840Hz	1920Hz/3840Hz	1920Hz/3840Hz	1920Hz/3840Hz
Current Consumption	270w/m2	270w/m2	270w/m2	270w/m2	270w/m2
maximum power consumption	800w/m2	800w/m2	800w/m2	800w/m2	800w/m2

FAQ

Q: What are the advantages of using a transparent LED screen rental for retail displays?

A: Transparent led display as a new type of advertising media, its novel advertising methods attract attention index explosion, greatly improve the sales center's attention rate and store rate, enhance the interest of customer consultation, thus promoting the sales center

Q: How do transparent LED screens work?

A: Transparent LED display is a display technology that uses light-emitting diodes (LEDs) to create images. Light from the LED is projected onto a transparent surface. This transparency allows for display on both sides of the screen.
