Flexible LED Panel Screen Display
soft module
soft led module
led display soft module

Flexible LED Panel Screen Display

A flexible LED screen is made up of LED pixels pitched on a pliable material like rubber or PCB. It is insulated using a flexible transparent material on both sides to protect the LED circuit from getting damaged. This structure makes flexible LED screens highly resilient.

Send Inquiry

Description

Characteristics

● The flexible LED panel screen display has Flexible module with good flexibility can be bent at multiple angles and radians.

● Meet personalized design,use a variety of complex environments,better visual brightness.

● The lifetime is more than 100,000 hours.

Series：P1.875

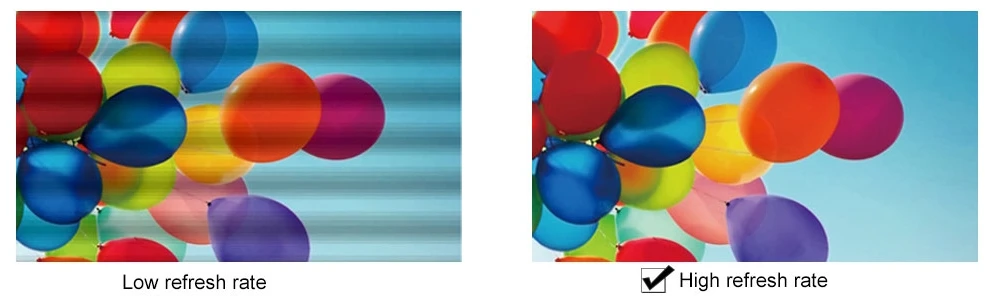

We also have the 3840Hz of Refresh frequency

flexible led screen panel

Advantages

No degumming	Wide-angle
No warping	Super high defnition
Big angle	High contrast rate

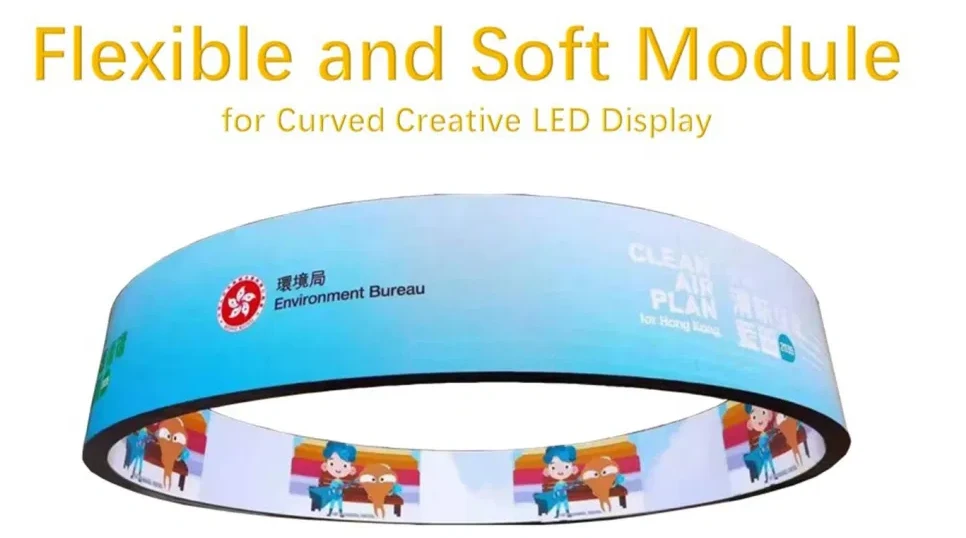

Good fexibility	(Flexible LED screen display has flexible and soft module for cured creative)

flexible led display panel flexible led panel video screen

Packaging

Wooden box

Flexible LED Panel Screen Display flexible led tv screen flexible led video panels

Unit board packaging

flexible led panel screen bendable led screen soft module

Air flight case

soft led module led display soft module Flexible LED Panel Screen Display

Simple wooden frame

flexible led screen panel flexible led display panel flexible led panel video screen

Parameter Specific

Introduce	Project	Technical Specification
Module specification	Pixel point type	full color
	Pixel configuration	RGB
	Module size	240mm120mm8.6mm
	Module Weight	0.216kg
	LED light package form	Lamp bead package1515
	Pixel density (points /㎡)	284443dot
	Psycho-Physical Spacing Model	1.875mm
	Module pixel points	128*64/8192dot
	scanning mode	1/32S
	LCD DRIVER IC	constant current IC ICND2065+5958
	mains input	5V
	maximum power	14W
	maximum current	2.8A
	operating temperature	Maximum 50℃/ Average 35℃
	color temperature	≤10000 K
	White balance brightness	750 CD/100 grade adjustable
Case specification	Box body material	iron case
	Case color	optional
	case size	Arbitrary design according to module size
	Box pixel	Arbitrary design points according to module points
	Moudle QTY of single cabinet	By box design
	horizontal view angle	160°
	vertical angle of view	140°
	flatness	＜0.3mm
	Module gap	＜0.3mm
	Individual box weight	According to the actual case
	Maximum power /㎡	600W

Introduce	Project	Technical Specification
Module specification	Pixel point type	full color
Box Specifications	Frame Rate	≥60 HZ
	Refresh Rate	3840 HZ
	Grayscale Levels	12-16 bit/16384Levels
	Signal Interface	HUB 75
	Mean Time Between Failures (MTBF)	>10000 hours
	Service Life	>100000 hours
Power Source	Input Voltage	AC 110/220V
	Operating Frequency	50HZ/60HZ
	Output Voltage	DC 5V

FAQ

Q: What size are flexible LED panels?

A: We offer various pixels for flexible LED panel ranging from P1. 875mm, P2mm, P3mm, P4mm to P5mm. The panel sizes can be 240*120mm, 320mm*160mm, and 256*128mm

Q: What is flexible LED screen?

A: A flexible LED screen is made up of LED pixels pitched on a pliable material like rubber or PCB. It is insulated using a flexible transparent material on both sides to protect the LED circuit from getting damaged. This structure makes flexible LED screens highly resilient.
