Flexible LED Film Screen

Flexible LED Film Screen

Flexible led film screen is a type of transparent LED screen that uses transparent circuit boards for display. It has the characteristics of transparent display, ultra-light ultra-high-definition, high-definition and high-brightness, simple application, intelligent control, energy saving and environmental protection, novel imaging, etc., realizing a new , irreplaceable and more extensive commercial applications, leveraging a larger media advertising market. It is widely used in various scenes such as various types of TV curtain walls, indoor screen displays, TV stations evening parties, large-scale entertainment columns, store windows and high-end commercial display exhibitions.
Send Inquiry

Description

Advantages


High transparency effect has high transmittance

with a transparency of 70%-95%, ensuring the lighting requirements and viewing angle range of the lighting structure, such as between floors, glass curtain walls, windows, etc., and ensuring that the original glass curtain wall is certain Some lighting features.

Light weight and does not take up space

The thickness of the motherboard is 10mm, and the total weight of the display screen is 12Kg/㎡. It is directly fixed to the glass curtain wall without changing the building structure.

Consume steel frame structure and save a lot of installation and maintenance costs

Directly fixed to the glass curtain wall, eliminating any steel frame structure and saving a lot of costs.

Unique display effect

Since the display background is transparent, the advertising image can be suspended on the glass curtain wall, which has good advertising and artistic effects.

Easy maintenance

Rapid indoor maintenance and safety saves manpower and material resources.

Energy saving

Energy saving and environmental protection does not require traditional refrigeration system and air conditioning refrigeration, and saves more than 30% energy than ordinary LED displays.

Application Scope




High contrast High brightness and high definition, increase the quality of the image, make the image more vivid and realistic.

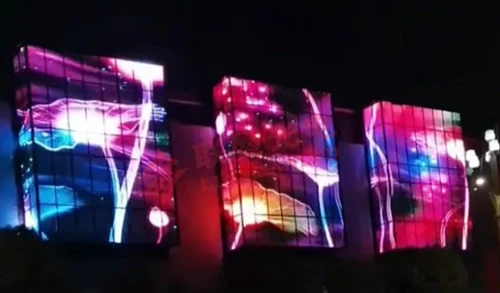

thin film led display

Glass curtain wall

Many buildings in the city use glass curtain walls, which are eye-catching and can be used as outdoor advertising carriers. If an flexible led film screen is installed, passing vehicles or pedestrians will be attracted by the transparent and dazzling advertising screen, thereby achieving good advertising communication effects.

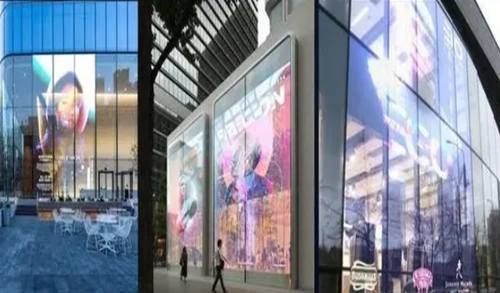

led film screen

Commercial showcase

In major cities, chain stores have set up glass showcases with a wide range of products, and showcases have become a part of people's lives. The led film screen in the store has transparent and brilliant advertising images, which can attract customers well and at the same time improve the fashion and class of the store.

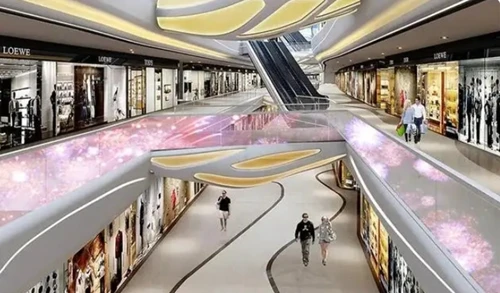

flexible led film screen

Glass handrail/fence

Wherever indoor glass guardrails are installed, such as shopping malls, high-speed rail stations, subway stations, shopping malls, etc., guardrail flexible led film screens can be used, which not only increases the overall sense of technology, but also plays a role in attracting customers. It can also be used for new product releases, Advertise through entertainment activities, festival celebrations, etc.

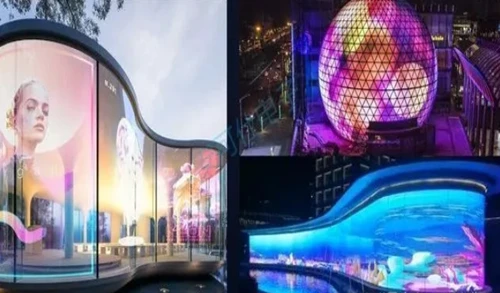

adhesive led transparent film screen

Customized areas

Conventional screen shapes are all square, which causes visual aesthetic fatigue. In the field of special-shaped customization, such as spherical, curved, etc., this kind of application of flexible led film screen can further improve the appearance and aesthetics, and can also well adapt to the overall structure and use requirements of the environment, which is very eye-catching and user-friendly.

Parameter Specific


Pixel pitch

3.91mm x 7.81mm

Pixel Configuration

1R1G1B

LED component

SMD1921

Size of module

250mm x 250mm

Resolution of module

64x32dots

Size of cabinet

500mm x 1000mm x 65mm

Resolution of cabinet

128x128 dots

Material of Cabinet

Aluminum + PC

Weight of Cabinet

7.5 Kg/pc

Brightness

>2500cd/sq.m

Density

32768dots/sq.m

Best viewing angle

140 /140

Pixel Configuration

1R1G1B

Best viewing distance

3-50M

Maximum power consumption

640W/sq.m

Average power consumption

400W/sq.m

Driving method

1/16 scan

Control method

Synchronization

Gray scale

65536

Colors

256*256*256

Color temperature

3200-9300k

Uniformity

97%

Working voltage

AC110V~240V±10%

Working temperature

-20ºC~+50ºC±10%

Working humidity

10% ~ 90%

MTBF

10,000 hours

Frame frequence

47~63Hz

Refresh frequence

>2880Hz

IP grade

IP42

Life Span

>50,000 hours

Data transafer method

RJ45/DVI

Pratical standard

CCC TUV-CE ETL etc.

Effectivce Communication
Distance(without relay)

Unshielded twisted pair net line transmission distance:100M,;

Max transmission distance:130M;

Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM

Accepting signal with video processor

PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.

Systems operating platform

WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development



FAQ


Q: Can I have a sample order for flexible led film screen display?

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or a whole display.

Q: What about the lead time?

A: About 2-3weeks. For customized LED film screen display, normally need around 35days.

Q: How do you ship the goods and how long does it take to arrive?

A: We mostly accept FOB trade term, but we can help you order and arrange shipping agent. It usually take 20 or 30 day on sea a few days for customer clearance.

Q: How to proceed an order for LED film screen display?

A: 1.Let us know your requirements or application.
2.We quote according to your requirements or our suggestions.
3.Customer confirms the design document and places deposit for formal order.
4.Customer pay for the balance and then We arrange the production.

Q: Do you offer guarantee for the products?

A: Yes, we offer a lifetime warranty for our products.
