LED Tile Display
Description
Advantages
1. Load-bearing and pressure-resistant.
The maximum load-bearing capacity of LED tile display on the market can generally reach 2 tons, or more than 2 tons.
2. Interactive induction.
The tile display realizes the interactive function of people and screens by installing pressure sensors and other methods. Specifically, when a person steps on a certain position of the floor tile screen, or when pressure is sensed at a certain position of the floor tile screen, the display screen of the floor tile screen will change accordingly.
3. High protection.
The surface of the LED tile display has been treated with frosted technology, making it waterproof, anti-slip and anti-glare. The protection level reaches IP65.
4. Quick installation.
The floor tile screen base frame is simple and convenient to build, and can be quickly adjusted and installed.
5. Wireless connection.
The box is placed on the frame, allowing it to fit automatically. Can be equipped with aviation plug connector to eliminate exposed wiring.
6. Magnetic module.
The magnetic module is easy to maintain.
Application Scope
LED tile display have a wide range of applications, and their attention-grabbing and creative interactivity make them useful in multiple industries.

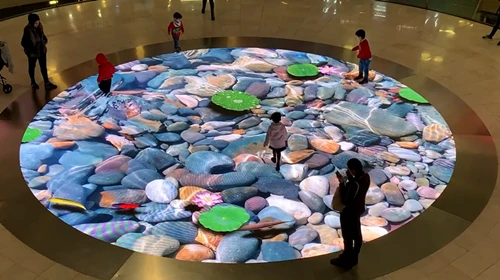

Entertainment venues
Entertainment venues such as amusement parks, theme parks, entertainment centers and nightclubs use the display to increase fun and interactivity. These screens can be used to create immersive experiences such as interactive games, musical performances or visuals on the floor.
Museums, exhibitions and art galleries
Museums, exhibitions and art galleries utilize led floor display to enhance the educational and entertainment experience for their audiences. They can be used to display historical information, simulate environments, or provide viewers with insight into artworks and exhibits.
Upscale hotels and restaurants
Upscale hotels and restaurants can enhance the customer experience by installing LED screens in the lobby or restaurant floors. These screens can display welcome messages, menus, special offers or decorative visuals.

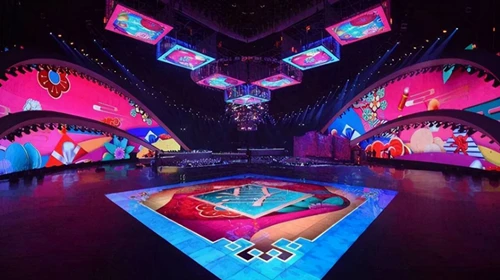

Sports venues
Sports venues use LED tile display to increase the entertainment of games. These screens can display stadium advertising, match statistics and celebrations, engaging spectators and increasing interactivity.
Various displays and exhibitions
In various displays and exhibitions, led floor display are used to attract audiences and convey information. They can be used to showcase new products, company information or provide interactive displays.
Education
In the field of education,LED tile display can be used for interactive teaching, providing opportunities for students to participate. Teachers and students can explore course content through touch and interaction.
Our the tile display have a wide range of applications in a variety of industries, and their interactivity, visual appeal and messaging capabilities make them an innovative and eye-catching tool. These screens are still evolving, and more new application areas may emerge in the future.
High contrast High brightness and high definition, increase the quality of the image, make the image more vivid and realistic.
Parameter Specific
|
Usage |
indoor |
|
Pixel Pitch |
4.81 mm |
|
LED Type |
SMD2121 |
|
Physical Density |
43264 dot/m² |
|
Scanning Mode |
1/13 |
|
Panel Size (W×H×D) |
500x500x87 mm/500x1000x87 mm |
|
Panel Material |
Die Casting Aluminum/iron |
|
Panel Weight |
8kg/16kg |
|
Panel Flatness |
≤0.10 mm |
|
Brightness |
≥1200 cd/ |
|
Viewing Angle |
≥140° (H) / 140° (V) |
|
Refresh Rate |
3840Hz |
|
Input Voltage AC |
110~240V |
|
Max. Power Consumption |
≤700 w/ |
|
Ave. Power Consumption |
≤300 w/ |
|
Working Temperature |
-20ºC~+60ºC |
|
Working Humidity |
10%~90% |
|
Protection Grade |
IP65 |
|
Lifespan |
≥100,000 hrs |
|
Usage |
indoor |
|
Pixel Pitch |
4.81 mm |
|
LED Type |
SMD2121 |
|
Physical Density |
43264 dot/m² |
|
Scanning Mode |
1/13 |
|
Panel Size (W×H×D) |
500x500x87 mm/500x1000x87 mm |
|
Panel Material |
Die Casting Aluminum/iron |
|
Panel Weight |
8kg/16kg |
|
Panel Flatness |
≤0.10 mm |
|
Brightness |
≥1200 cd/ |
|
Viewing Angle |
≥140° (H) / 140° (V) |
|
Refresh Rate |
3840Hz |
|
Input Voltage AC |
110~240V |
|
Max. Power Consumption |
≤700 w/ |
|
Ave. Power Consumption |
≤300 w/ |
|
Working Temperature |
-20ºC~+60ºC |
|
Working Humidity |
10%~90% |
|
Protection Grade |
IP65 |
|
Lifespan |
≥100,000 hrs |
|
Usage |
indoor |
|
Pixel Pitch |
4.81 mm |
|
LED Type |
SMD2121 |
|
Physical Density |
43264 dot/m² |
