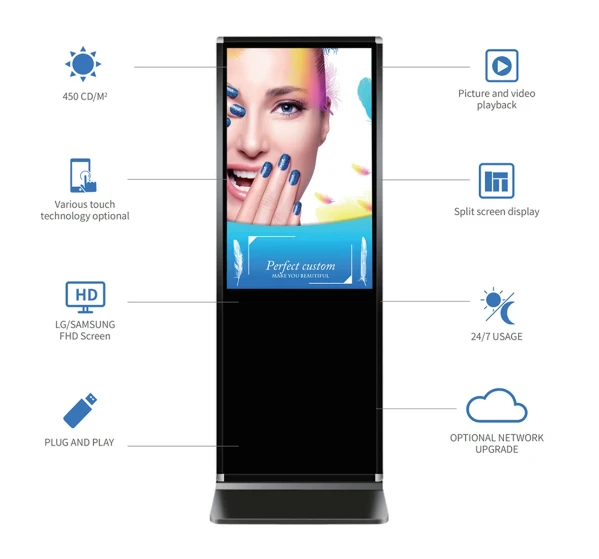

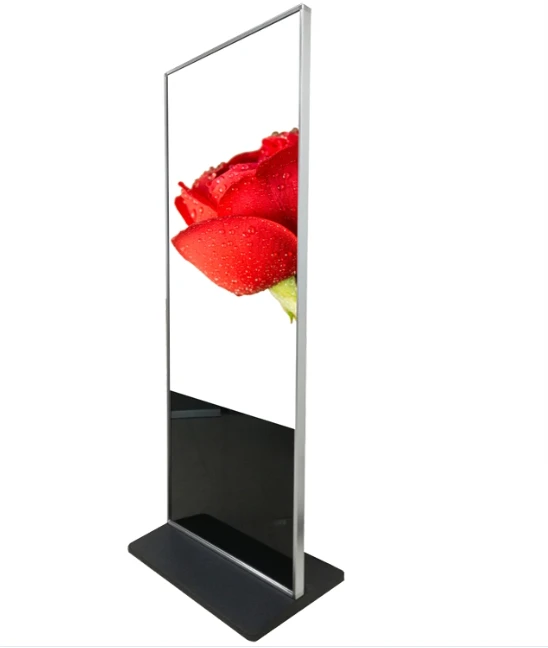

Vertical Advertising Machine
Description
Characteristics
The vertical advertising machine is a new generation of intelligent equipment. It forms a complete advertising broadcast control system through terminal software control, network information transmission and multimedia terminal display, and uses multimedia materials such as pictures, text, videos, and widgets (weather, exchange rates, etc.) Advertising. The original idea of the advertising machine was to change advertising from passive to active, so the interactivity of the advertising machine makes it have many public service functions and attract customers to actively browse advertisements.
The ultimate goal of the vertical advertising machine is to occupy the advertising market share. Since the advertising machine can carry out advertisements beyond time constraints and space restrictions, making advertisements free from time and space constraints, media companies will play advertisements in more time periods, and the advertising machines will play advertisements 24 hours a day. On call anytime, anywhere. According to the requirements of many media companies, general advertising machines have a power-on and off-time period to play advertisements, effectively disseminating and displaying the effectiveness of advertisements. Advertising machine design can spread a variety of media messages. Such as text, sound, images and other information, making ignorant, boring and abstract advertisements more vivid and humane. And can give full play to the creativity and initiative of media companies. Advertising through advertising machines can replace leaflets, newspapers, and TV advertisements. On the one hand, it can reduce the cost of printing, mailing, and expensive TV advertisements. On the other hand, CF cards and SD cards can be rewritten multiple times to reduce losses caused by multiple exchanges.

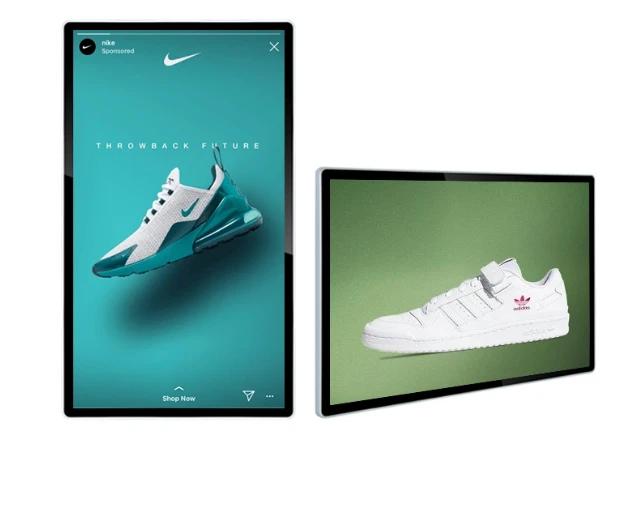

Series：vertical advertising machine,Wall-mounted advertising machine and floor advertising machine.
Advantages
1. High contrast :
High brightness and high definition, increase the quality of the image, make the image more vivid and realistic.

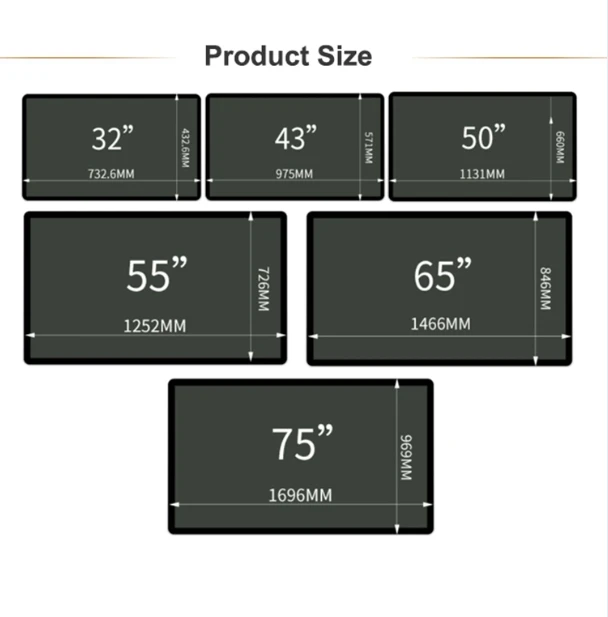

2. Product size :32",43",50",55",65",75". Other different sizes can also be customized.
Parameter Specific
| Screen configuration | Motherboard configuration |
| Screen size: 43 " | CPU: RK3188, quad-core, frequency 1.6GHz |
| Resolution: 1920(RGB)×1080[FHD] | Memory: 1 / 2G (optional) |
| Display size: 941.184 × 529.416 mm (H × V) | Built-in memory: EMMC FLASH 8G (optional) |
| Visual size: 945.18 × 533.42 mm (H × V) | Built-in ROM: 2KB EEPROM |
| Brightness:(cd / m2): 400 (Typ.) | Decoding resolution: up to 1080P |
| Best angle: full view | Operating system:Android 4.4 above |
| Viewing angle: 89/89/89/89 (Min.) (CR ≥ 10) | Play mode: support for the cycle, timing, spots and other playback modes |
| Number of colors: 16.7M/1.07B, 95% [CIE1931] | Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion |
| Pitch: 0.227mm (H) x 0.227mm (W) | Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on |
| Screen Weight: 6.30Kgs (Typ./Max.) | Picture format: support BMP, JPEG, PNG, GIF |
| Refresh frequency: 60Hz | USB2.0 interface: 3 USB HOST, 3 USB socket |
| Signal system:51 pins LVDS (2 ch, 8-bit) , terminal | Serial port: 3 serial socket |
| Supply voltage: 12.0V (Typ.) | TVIn: CVBS input 2, support N, P standard |
| Maximum rated: Storage temperature: -20 ~ 60 ° C Operating temperature: 0 ~ 50 ° C | GPS: built-in GPS (optional) |
| Screen type: LCD module, a-Si TFT-LCD | WIFI, BT: built-in WIFI, BT (optional) |
| Pixel configuration: RGBW vertical strip | Ethernet: 1, 10M / 100M adaptive Ethernet |
| Appearance size: 975.5 × 582.2 × 10.5 (H × V × D) | Timing switch machine: support |
| Surface treatment: matte (Haze 3%), Hard coating (1H) | |
| Contrast: 1100 : 1 (Typ.) [Transmission] | |
| Optical mode: IPS, normally black display, transmissive | |
| Response speed: 6 (Typ.) (G to G) ms | |
| Backlight type: WLED, 30K hours, with LED driver | |
| Infrared touch | |
| Material: tempered glass | |
| Glass thickness: 3mm, 4mm, 6mm | |
| Surface abrasion strength: strong, determined by the glass surface | |
| Transparency: ≥95%, up to 100% (no glass) | |
| Homogeneity: good | |
| Touch the parameter | Electrical parameters |
| The number of times the theory is determined by the degree of glass wear | Working voltage: 4.5 ~ 5.5Vdc |
| Design life: more than 5 years | Working current: ≤120mA |
| Touch the fastest response speed: 6ms | Power: ≤ 900mW |
| Touch the average reaction speed: 8ms | |
