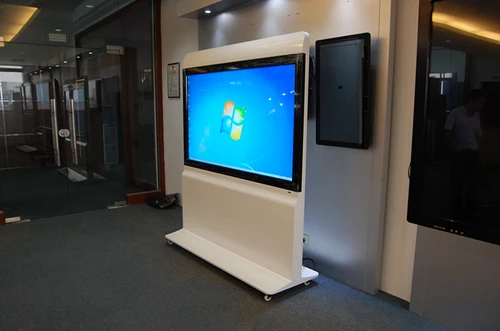

Touch All-in-one Machine

The touch all-in-one machine is composed of advanced touch screen, motherboard, memory, hard disk, graphics card and other electronic components. It works on the same principle as a traditional PC. Depending on the size of the touch screen and the software, it can be used for public information inquiry, advertising display, media interaction, conference content display, offline experience store product display, etc., such as fingerprint scanners, scanners, card readers, micro printers, etc. Designed to meet specific needs such as fingerprint attendance, card swiping, and printing. Generally different from electronic whiteboards, they can achieve more functions.

Send Inquiry

Description

Advantages

The touch all-in-one machine can dynamically display three-dimensional models of objects and has a good interactive experience function. The audience can operate it by themselves through the touch all-in-one machine, and "touch" objects on the screen at zero distance. The audience can also rotate and zoom in at will on the screen of the touch all-in-one machine, freely appreciate the objects, and view the structure of the object from multiple angles and with high definition. , shape, color and other details. In addition, the touch all-in-one machine is also equipped with vivid and concise introduction of object information and related knowledge. The three-dimensional display of objects not only enriches the exhibition form and content, but also satisfies the audience's thirst for knowledge and curiosity to a greater extent, and makes the masses The visit and study became lively and interesting.

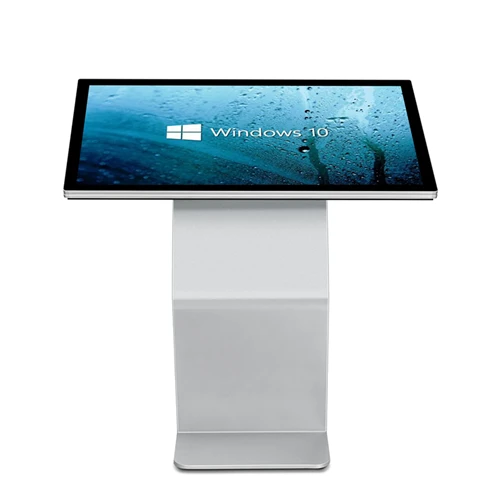

touch all-in-one machine Advertising machine

Application Scope

We can see it in business halls, postal service halls, tax collection halls, city streets (city information inquiry), office buildings, airports, stations, banks, museums, libraries, exhibitions, hospitals, hotels and many other places. One machine.

In short, no matter where you go to do business, when you encounter the Touch all-in-one machine, you only need to touch the screen lightly with your fingers, and the information you need will be presented in front of you. If all places where we need to ask questions or consult are equipped with touch inquiry machines, then our work and life will be much more convenient.

High contrast High brightness and high definition, increase the quality of the image, make the image more vivid and realistic.

touch all-in-one machine

Parameter Specific

size	43/49/55/65 inch
Native Resolution	1920×1080
Display Size	930.24(H) x 523.26 (V)mm
display colors	16.7M
viewing angle	H:176° V:176°
brightness	450cd/m2
contrast ratio	5000:1
response time	6ms
Audio system
Speaker	2×5W(8Ω)
Sound mode	stereo
Power
input voltage	AC100-240v 50/60HZ
standby power	Less than 1W, support low power standby mode
Rated power	Less than 100W
appearance
texture of material	Aluminum profile
The appearance of color	Black (can be customized)
installation	Floor type
Appearance size	178963580mm
work environment
Working temperature and humidity	0ºC~50ºC/20%~80%
Storage temperature and humidity	-10ºC~60ºC/5--95%
Machine life	50000hrs
Main hardware index
CPU	A83T, Eight core 2.0GHz
Memory	2G (4G optional)
internal memory	NAND FLASH 8G (16G,32G optional)
Decoding resolution	1080P
operating system	Support 4.0.3 Android above
Play mode	Support cycle, timing, spots and other display modes
network support	Ethernet, support WiFi, wireless peripheral extension
Video playback	Support WMV, avi, flv, RM, RMVB, MPEG, TS, MP4, etc
Picture format	Support BMP, JPEG, PNG, GIF, etc.
USB2.0	2 USB
Ethernet	1, 10M/100M adaptive Ethernet
LVDS output	1, can be directly driven 50/60Hz LCD screen
HDMI output	1, support 1080P output
Audio / video input / output	Support CVBS video input, left and right channel output (support dual channel 8R/3W, 4R/6W speaker)
RTC real time clock	support
Timing switch	support
System upgrade	T-card support USB/ / network upgrade
