LED Display Parts

Led display parts include video controllers, receiver cards, power supplies, and more. The video controller integrates video processing and video control functions.

Send Inquiry

Description

Characteristics

Led display parts include video controllers, receiver cards, power supplies, and more. The video controller integrates video processing and video control functions. It supports three device working modes: video control mode, photoelectric conversion mode and ByPass mode. Meet the on-site ultra-wide and ultra-high display screen control. It can receive and process a variety of video signals, has high-definition image processing capabilities, and supports functions such as stepless scaling, low latency, and point-by-point chromaticity correction of the output picture, which can provide excellent image display. With strong video processing and sending capabilities, it is widely used in the fields of mid-to-high-end rental, stage control and engineering small-pitch LED displays.

The following is for video controller descriptions only.

Model: VX1000/VX600/VX400

Advantages

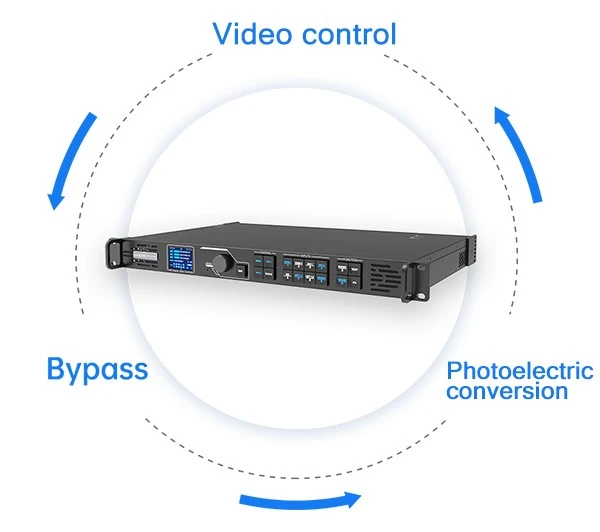

1. Various modes		2. Application scenarios

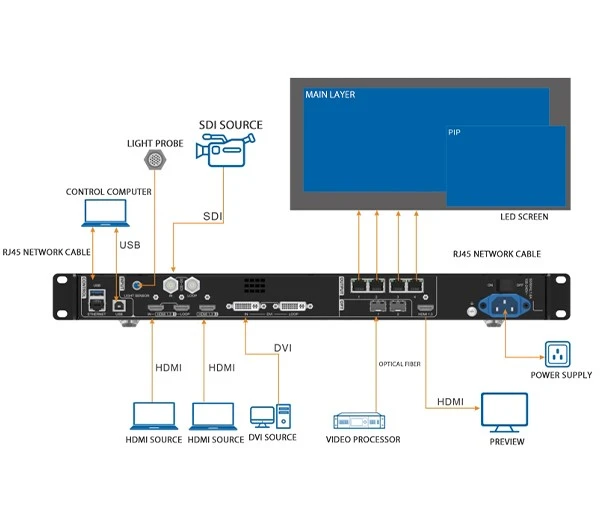

Front and rear heat dissipation design: comprehensive electrostatic protection, signal safety and stability.		Application scenarios(Take VX400 as an example)

led screen parts led display board parts

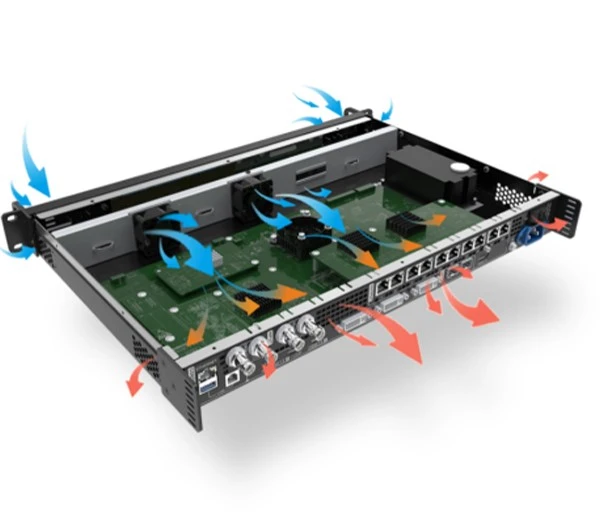

3. Heat dissipation	4. Various backup methods

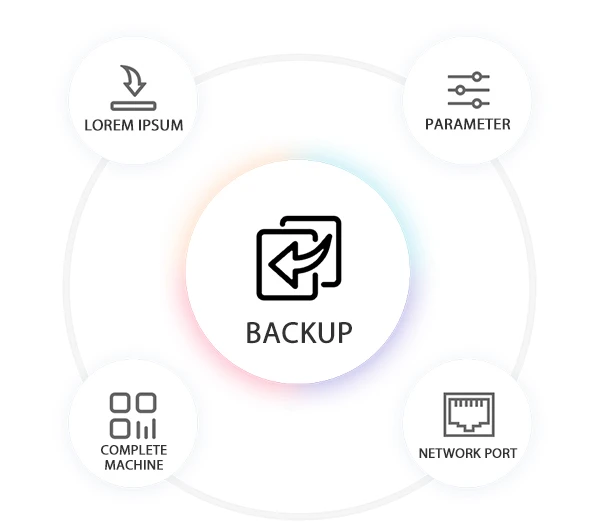

Front and rear heat dissipation design: comprehensive electrostaticprotection, signal safety and stability.	It supports input source backup, device parameter backup, network port backup, and device backup of the whole machine, escorting data from front to back.

led monitor parts led monitor spare parts

Parameter Specific

Model	VX1000	VX600	VX400
Width and height limits	6.5 million pixels	3.9 million pixels	2.6 million pixels
Width and height limits	Maximum width: 10240 ; Maximum height: 8192
Layer	3 x 4K x 1K layers	3 x 2K x 1K layers	2 x 2Kx 1K layers
Number of scenes	10	10	10
Input interface	1×3G-SDI 2×HDMI 1.4 2×DVI(HDMI 1.4) 1 × OPT1 input	1×3G-SDI 2×HDMI 1.3 1×DVI 1×OPT1 input	1×3G-SDI 2×HDMI 1.3 1×DVI 1×OPT1 input
Output interface	10×Ethernet port 1×HDMI 1.3 1×HDMI 1.4 LOOP 1×DVI LOOP 1×3G-SDI LOOP 2×OPT	6×Ethernet ports 1×HDMI 1.3 1×HDMI 1.3 LOOP 1×DVI LOOP 1×3G-SDI LOOP 2×OPT	4×Ethernet port 1×HDMI 1.3 1×HDMI 1.3 LOOP 1 × DVI LOOP 1×3G-SDI LOOP 2×OPT
Control interface	Ethernet port USB(Input/Output) GENLOCK(IN-LOOP)	Ethernet port USB(Input/Output) GENLOCK(IN-LOOP)	Ethernet port USB(Input/Output) 1×Light Sensor
Other features	Can be spliced and cascaded Customizable function buttons Support scene saving and calling Image quality adjustment	Can be spliced and cascaded Customizable function buttons Support scene saving and calling Image quality adjustment	Can be spliced and cascaded Customizable function buttons Support scene saving and calling Image quality adjustment

The following is a picture of the power supply and receiving card

power supply

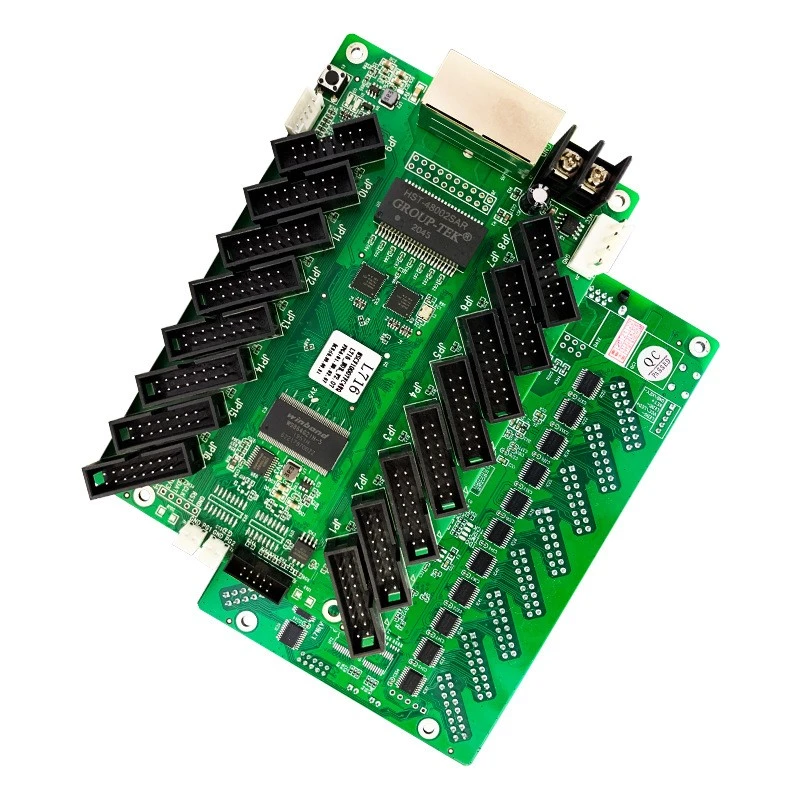

Receive the card

FAQ

Q: What does the led display parts include?

A: The Components and Structures of LED Display Screens. The LED display consists of three parts: the main LED display, the content source, and the controller. The display consists of multiple LED display panels that are connected and make up the main body of the led display.

Q: How do you connect LED modules?

A:The LED module must be used with compatible led display parts.You connect the positive terminals and the negative terminals of the LED driver and the LED module together to create a closed electrical circuit. The difference to connecting a single LED component is that you may have to connect several LED modules into the same LED driver.
