A New Chapter in LED Display Packaging: What Is The Difference Between SMD And COB Technology?

With the rapid development of the commercial display industry in recent years, LED display screens, as an indispensable part of it, have been undergoing technological innovations with each passing day. Among the many technologies, SMD (Surface Mount Device) packaging technology and COB (Chip on Board) packaging technology are particularly eye-catching. Today, we will analyze the differences between these two technologies in an easy-to-understand way and take you to appreciate their respective charms.

First, let's start with the technical aspect. SMD packaging technology is a form of electronic component packaging. SMD, the full name of which is Surface Mounted Device, means surface mount device. It is a technology widely used in the electronics manufacturing industry for packaging integrated circuit chips or other electronic components so that they can be directly mounted on the surface of a PCB (printed circuit board).

Main features:

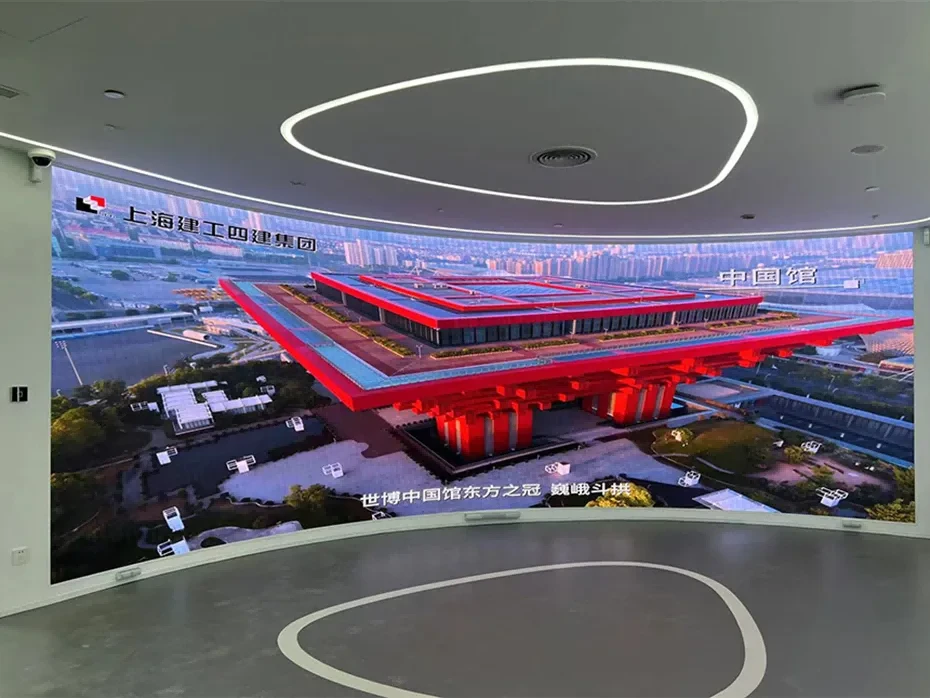

Small size: SMD packaged components are small in size, enabling high-density integration, which is conducive to the design of miniaturized and lightweight electronic products.

Light weight: Since SMD packaged components do not require pins, the overall structure is lightweight and suitable for applications that require light weight.

Good high-frequency characteristics: The short pins and short connection paths of SMD packaged components help reduce inductance and resistance and improve high-frequency performance.

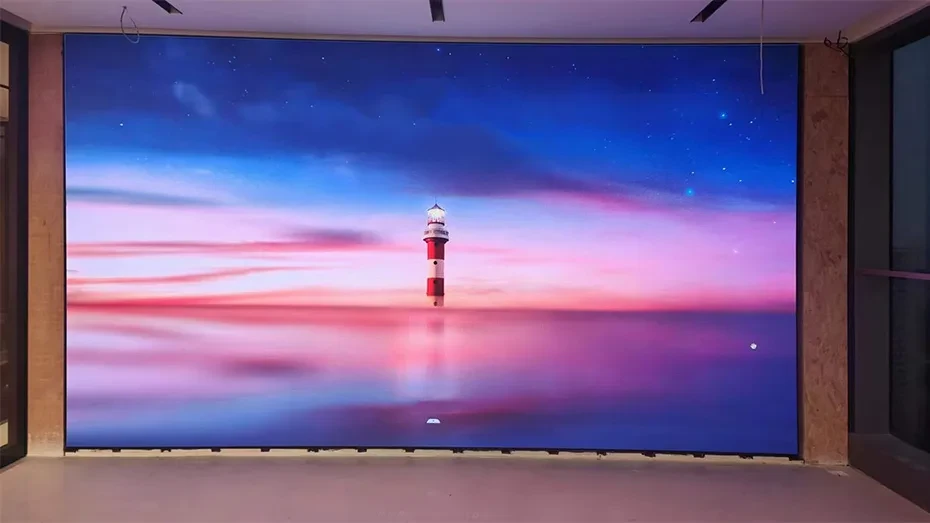

Convenient for automated production: SMD packaged components are suitable for the production of automated patch machines, which improves production efficiency and quality stability.

Good thermal performance: SMD packaged components are in direct contact with the PCB surface, which is conducive to heat dissipation and improves the thermal performance of the components.

Easy to repair and maintain: The surface mounting method of SMD packaged components makes it more convenient to repair and replace components.

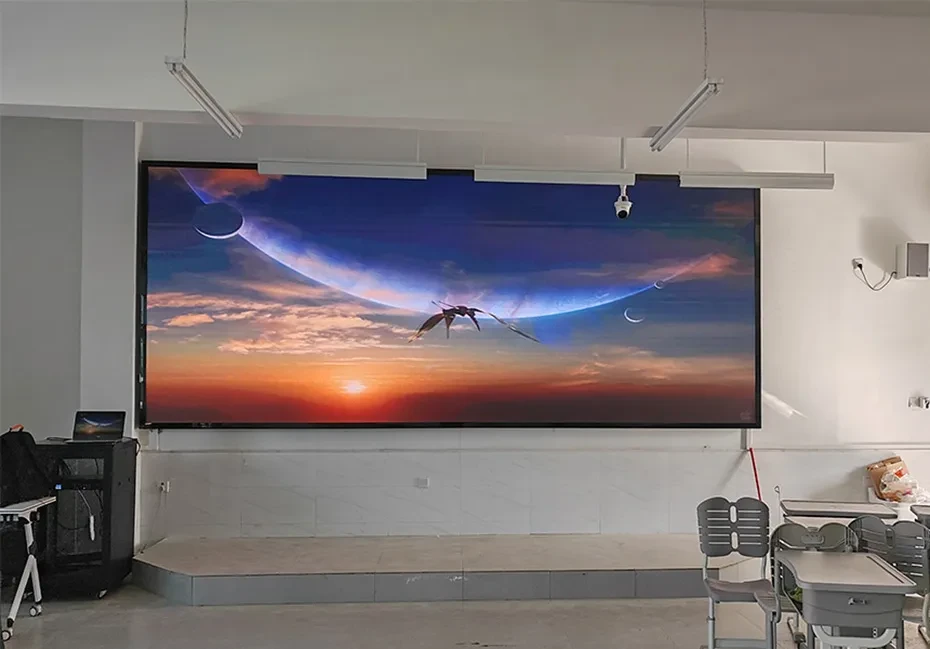

Package type: There are many types of SMD packages, including SOIC, QFN, BGA, LGA, etc. Each package type has its specific advantages and applicable scenarios.

Technological development: Since its launch, SMD packaging technology has developed into one of the mainstream packaging technologies in the electronics manufacturing industry. With the advancement of technology and market demand, SMD packaging technology is also constantly developing to meet the needs of higher performance, smaller size and lower cost.

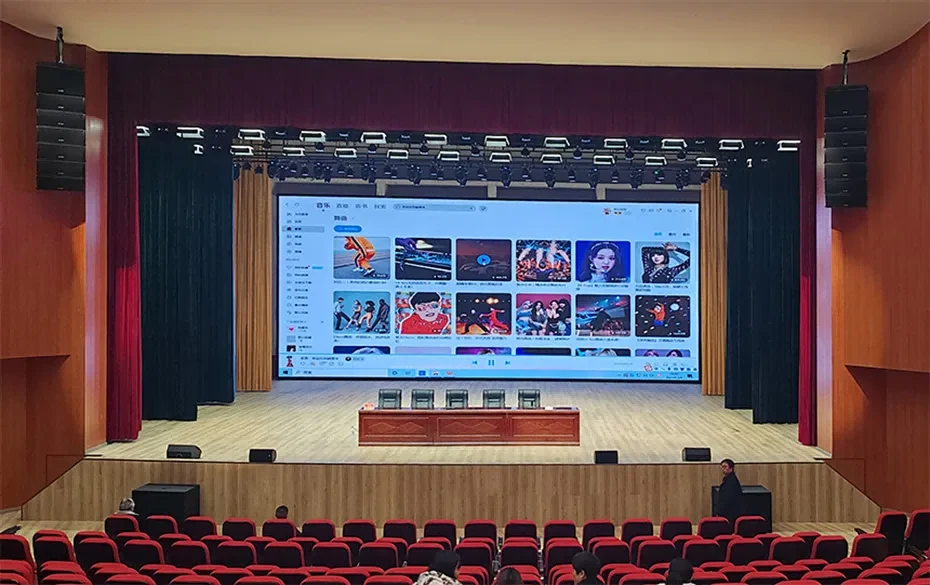

COB packaging technology, full name Chip on Board, is a packaging technology that directly solders the chip on the PCB (Printed Circuit Board). This technology is mainly used to solve the heat dissipation problem of LEDs and achieve close integration of chips and circuit boards.

Technical principle: COB packaging is to adhere the bare chip to the interconnect substrate with conductive or non-conductive glue, and then perform wire bonding to achieve its electrical connection. During the packaging process, if the bare chip is directly exposed to the air, it is susceptible to contamination or human damage, so the chip and bonding wires are usually encapsulated with glue to form the so-called "soft encapsulation".

Technical features: Compact packaging: Since the package and PCB are combined together, the chip size can be greatly reduced, the integration can be improved, and the circuit design can be optimized, the circuit complexity can be reduced, and the system stability can be improved.

Good stability: The chip is directly soldered on the PCB, so it has good vibration resistance and impact resistance, and can remain stable in harsh environments such as high temperature and humidity, extending the product life.

Good thermal conductivity: Using thermal conductive glue between the chip and the PCB can effectively improve the heat dissipation effect, reduce the impact of heat on the chip, and increase the chip life.

Low manufacturing cost: No pins are required, which eliminates some complex processes of connectors and pins in the manufacturing process and reduces the preparation cost. At the same time, it can realize automated production, reduce labor costs, and improve manufacturing efficiency.

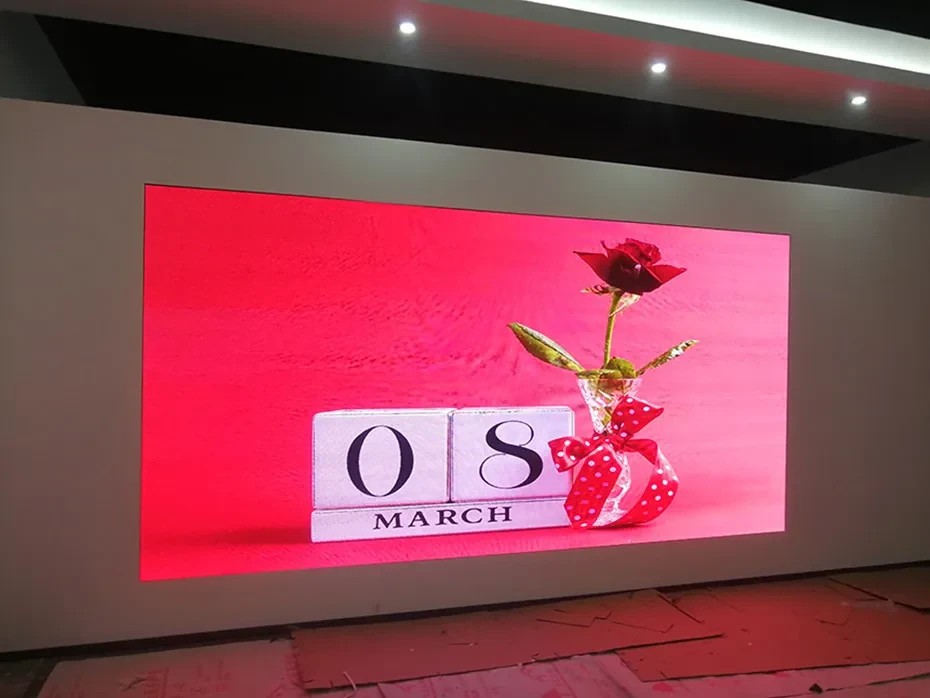

Note: Difficulty in maintenance: Since the chip and PCB are directly welded, it is impossible to disassemble or replace the chip separately. Generally, the entire PCB needs to be replaced, which increases the cost and difficulty of maintenance.

Reliability dilemma: The chip is embedded in the adhesive, and the dissolution process is easy to damage the micro-disassembly frame, which may cause the pad to be missing and affect the production tendency.

High environmental requirements during the production process: COB packaging does not allow dust, static electricity and other pollution factors in the workshop environment, otherwise it is easy to increase the failure rate.

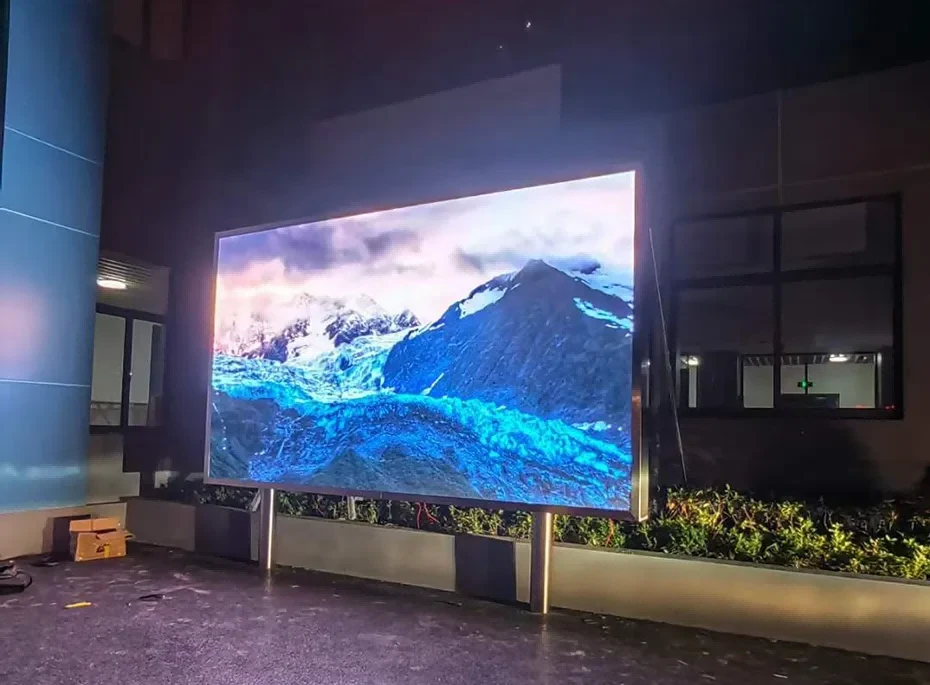

In general, COB packaging technology is a cost-effective and excellent technology with broad application potential in the field of smart electronics. With the further improvement of technology and the expansion of application scenarios, COB packaging technology will continue to play an important role.

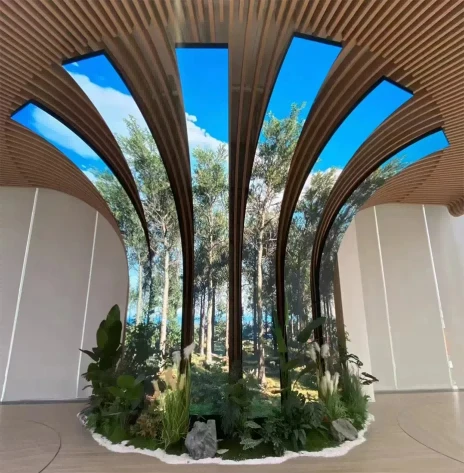

So, what is the difference between these two technologies?

Visual experience: COB display, with its surface light source characteristics, brings a more delicate and uniform visual experience to the audience. Compared with SMD's point light source, COB has brighter colors, better detail processing, and is more suitable for long-term close-up viewing.

Stability and maintainability: Although SMD display screens are easy to repair on site, their overall protection is weak and they are easily affected by the external environment. COB display screens, on the other hand, have a higher level of protection due to their overall packaging design, and are better at waterproofing and dustproofing. However, it should be noted that once a fault occurs, COB display screens usually need to be returned to the factory for repair.

Power consumption and energy efficiency: Since COB uses an unobstructed flip-chip process, its light source efficiency is higher and power consumption is lower at the same brightness, saving users electricity expenses.

Cost and development: SMD packaging technology is widely used in the market due to its high maturity and low production cost. Although COB technology is theoretically cheaper, its actual cost is still relatively high due to its complex production process and low yield. However, with the continuous advancement of technology and the expansion of production capacity, the cost of COB is expected to be further reduced.

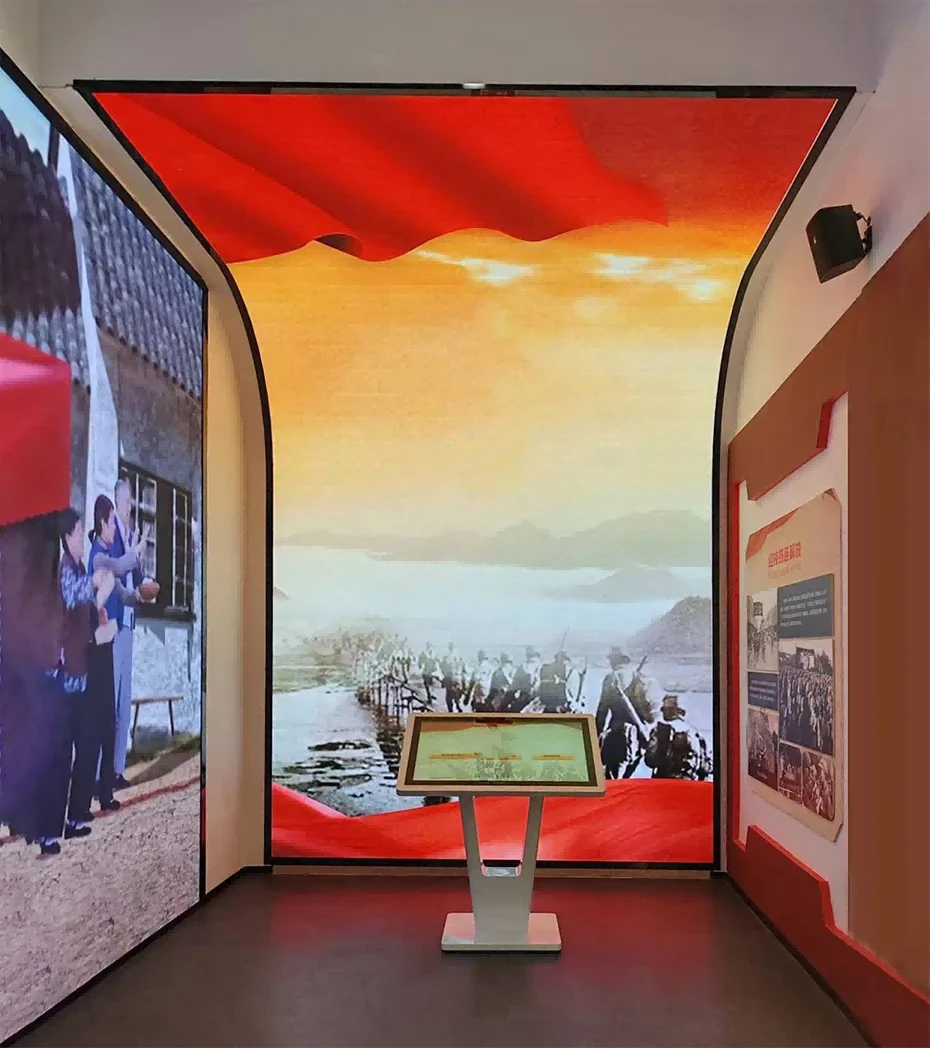

Nowadays, in the commercial display market, COB and SMD packaging technologies have their own advantages. With the growing demand for high-definition displays, Micro LED display products with higher pixel density are gradually favored by the market. COB technology, with its highly integrated packaging characteristics, has become one of the key technologies to achieve high pixel density of Micro LED. At the same time, as the dot pitch of LED screens continues to shrink, the cost advantage of COB technology is becoming increasingly prominent.

In the future, with the continuous advancement of technology and the continuous maturity of the market, COB and SMD packaging technologies will continue to play an important role in the commercial display industry. We have reason to believe that in the near future, these two technologies will jointly promote the commercial display industry to develop in a higher definition, smarter and more environmentally friendly direction. Let us wait and see, and witness this exciting moment together!

The above is some basic knowledge about the difference between SMD and COB technology. I hope it will help you understand SMD display and COB display. If you have any needs for COB display, you can click here to jump to our COB product page to learn more about the characteristics of our brand COB products. You can also click here to contact us and tell us your specific needs directly. We will arrange professional personalized customization experts to provide you with the most professional services.
