How To Precisely Select Indoor Small-Pitch LED Displays

(I) Match Viewing Distance

The pixel pitch (P-value) directly determines the viewing experience and needs to be selected precisely based on the site distance:

1-3 meters: Choose P0.9-P1.5, suitable for exhibition halls and small meeting rooms, ensuring no graininess for close-up viewing.

3-5 meters: Choose P1.5-P2.0, suitable for medium-sized meeting rooms and monitoring centers, balancing image quality and cost.

Over 5 meters: Choose P2.0-P2.5, meeting the needs of large lecture halls and command centers, and avoiding budget waste caused by excessively pursuing small P-values.

(II) Adapt to Usage Scenarios

Different scenarios have distinct performance requirements for the screen:

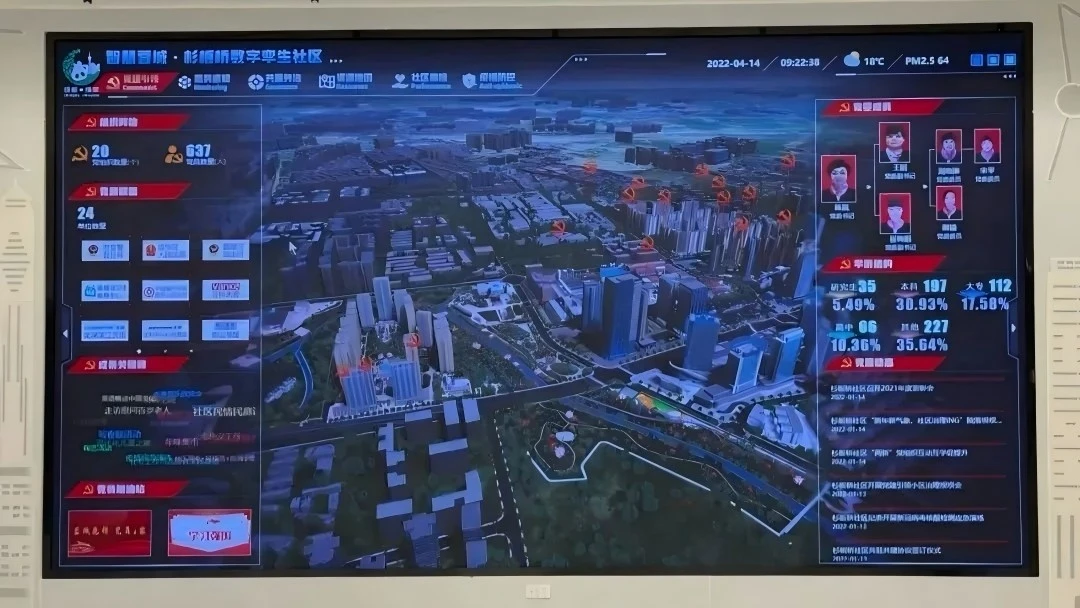

Command and Dispatch Centers: Require high refresh rates (≥4800Hz) and high contrast to ensure stable 24-hour operation.

High-end Meeting Rooms: Focus on color reproduction (≥90% NTSC color gamut) and low noise to enhance meeting experiences.

Corporate Exhibition Halls: Support curved/irregular customization and touch interaction to meet creative display needs.

(I) Core Performance Indicators

Brightness: For indoor use, 200-500cd/㎡ is conventional. It can be appropriately increased in bright-light environments without being overly glaring.

Refresh Rate: Prioritize ≥3840Hz to eliminate flickering and ghosting in videos and dynamic images.

Contrast Ratio: ≥10000:1 is ideal, ensuring clear details in dark scenes and transparent, vivid images.

(II) Quality and Stability

Encapsulation Technology: Traditional SMD has low cost but weak protection. It is recommended to prioritize GOB full-protection technology, which is moisture-proof, dust-proof, and anti-static, reducing later maintenance costs.

Raw Materials: Choose first-tier brand LED beads and driver ICs to ensure the stability and service life of the display.

(I) Installation and Maintenance

Installation Methods: Choose wall-mounted, ceiling-mounted, or embedded installation based on the site. Prioritize front-maintained modules, allowing quick replacement of a single faulty module to minimize downtime.

Maintenance Assurance: Select brands that provide localized services and offer a warranty of over 2 years to avoid delays in fault repairs.

(II) Brand and After-sales Service

Prioritize brands with strong technical capabilities and good reputations. Pay attention to whether they provide full-process solution design, professional installation and commissioning, and rapid after-sales response, ensuring a worry-free experience from selection to use.
