Knowledge Popularization of LED Curved Screen

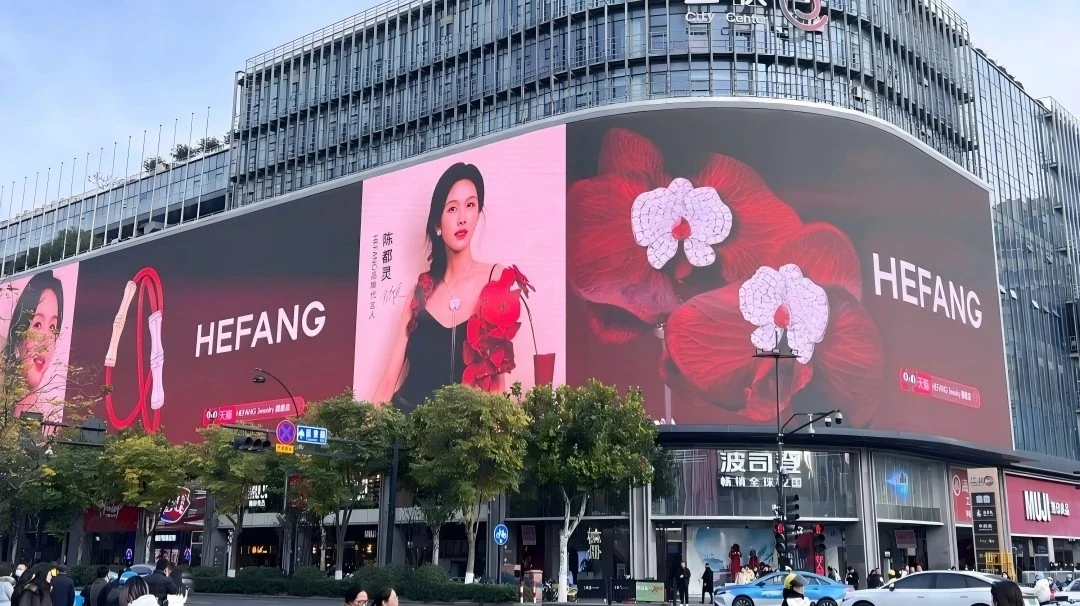

Definition and Advantages of LED Curved Screen

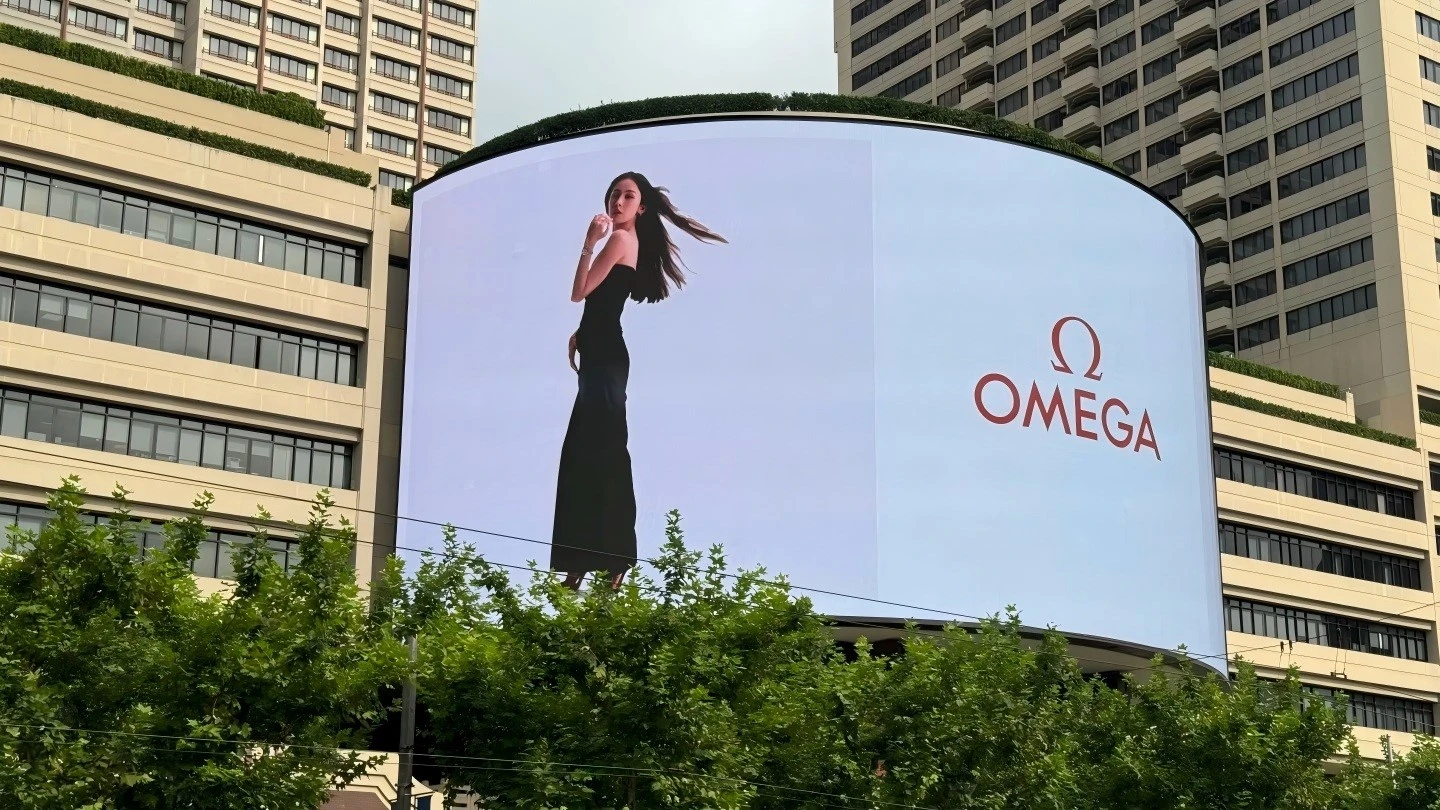

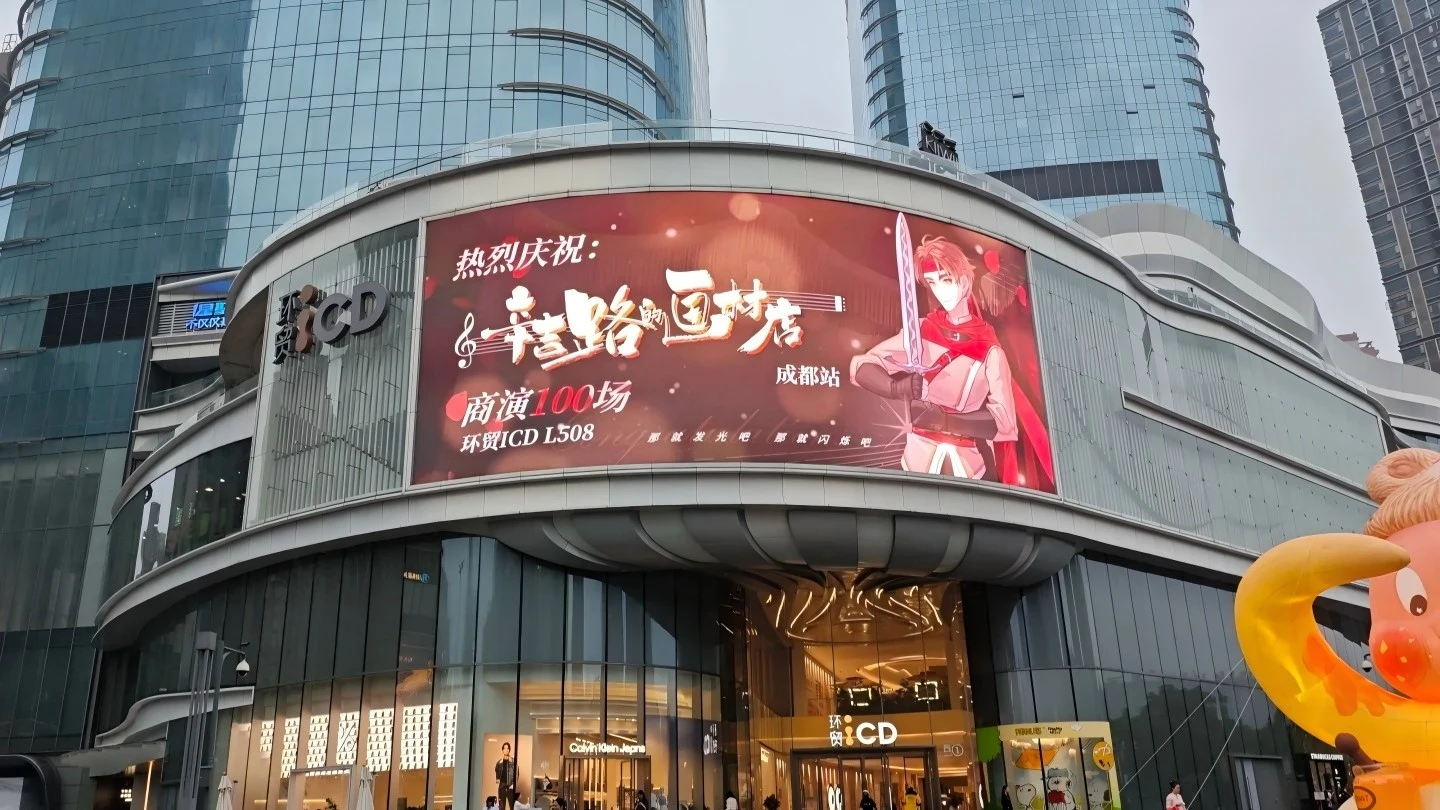

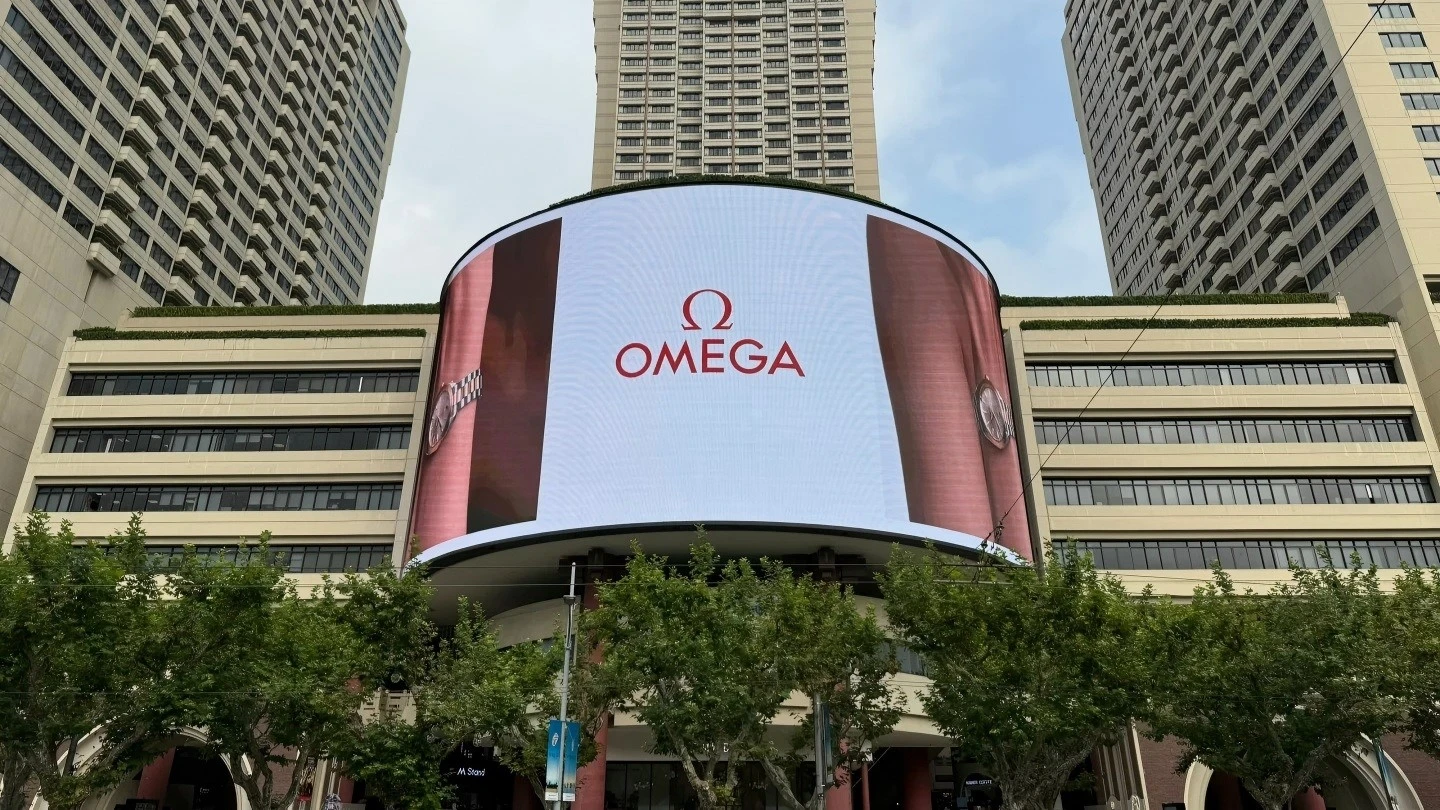

Basic Concept: An outdoor LED curved screen is a display screen that achieves a curved surface shape through modular splicing. It can be customized into inner arc, outer arc, circular, or multi-segment arc structures, making it suitable for buildings with irregular surfaces.
Core Advantages:

Immersive Experience: The curved design expands the viewing angle to 360° without dead angles, simulating the natural field of view of the human eye and enhancing the sense of enclosure in dynamic content.
Flexible Adaptation: Supports complex curved architectural structures such as cylinders, wavy walls, etc., combining both decorative and functional aspects.
High Brightness and Durability: Typically equipped with a brightness level above 5000nits and an IP65 protection rating, making it adaptable to strong light, rainwater, and other outdoor environments.

Key Technologies and Design Points

Modular Splicing Technology: Adopts flexible modules or small-pitch LEDs, quickly installed using magnetic attraction/locks, with a curvature radius error within ≤3% to ensure image coherence.
Structural Design Challenges:

Load Calculation: Considerations must include factors like wind pressure and self-weight, with a steel structure safety factor of at least 1.5 times.
Heat Dissipation and Maintenance: Built-in intelligent temperature control systems, along with maintenance passages and drainage designs, extend service life.
Image Quality Optimization: High refresh rates (≥3840Hz) and contrast ratios (5000:1) ensure smooth dynamic images and reduce motion blur.

Typical Application Scenarios

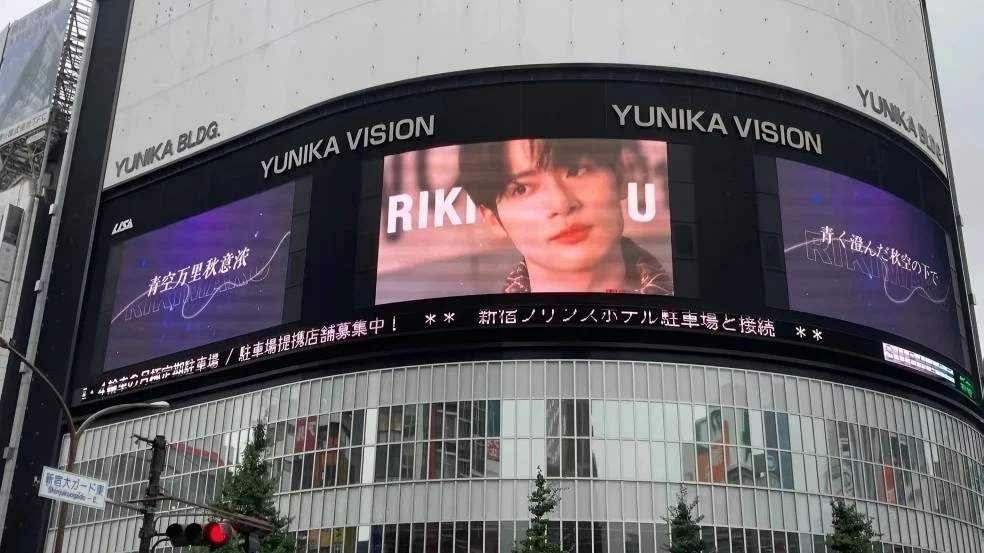

Commercial Landmarks: Such as the naked-eye 3D large screen in Shibuya, Tokyo, and the circular screen at Xi'an Xianyang Airport, which attract customers and enhance brand image through stunning visual effects.
Cultural and Sports Entertainment: Stadium fence screens, concert circular giant screens, creating an immersive atmosphere for watching games/performances.
Enterprise Digital Interface: The facade LED curved screen of a company's R&D headquarters in Zhejiang integrates information dissemination, brand display, and interactive functions, becoming part of the urban public landscape.

Procurement and Maintenance Guide

Brightness Matching: For areas with strong light, choose above 8000nits; for cloudy days, 5000nits may suffice.
Pixel Pitch: Long-distance viewing recommends P8-P10; close-up high-definition needs select P2-P4.

Regularly check the aging status of waterproof rubber rings, strengthen drainage measures during the rainy season.
When cleaning, disconnect power first, use a soft brush to remove dust, avoid directly flushing module gaps with a high-pressure water gun.

Future Development Trends

Technological Innovation: Mini LED and flexible substrate technologies promote screen lightweight, combined with AR/VR to achieve virtual-real interaction scenarios.
Green Energy Saving: New low-power modules and solar power supply solutions align with the needs of low-carbon city construction.
Smart City Integration: Real-time content updates via the Internet of Things, linking transportation, environmental protection, and other public data, creating multifunctional urban interaction terminals.
